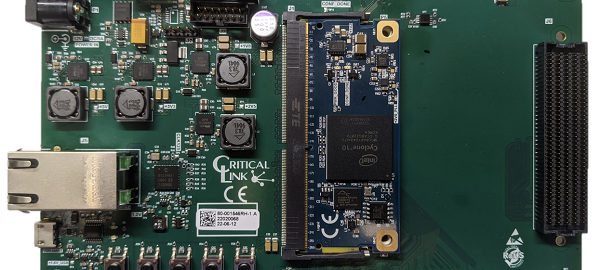

MitySOM-C10L / MitySOM-C10G Development KitDevelopment Kit for MitySOM-C10L/G, featuring Intel / Altera Cyclone 10 LP (Low Power) or GX FPGA with options up to 80KLE

Product status: Prototypes Available

Overview



The MitySOM-C10L/G Development Kit supports Critical Link’s Cyclone 10 FPGA-based modules.

Each kit includes a compatible MitySOM-C10L or MitySOM-C10G module (see Purchase table below for compatible modules) and a base board that features on-board Debug UART to USB converter and 10/100/1000 Gb Ethernet communication interfaces, FMC HPC connector that is compatible with a wide range of existing add-on cards, and two 60-pin dual row connectors that provide additional IO expansion options. All powered from a single 12VDC input (adapter included) with onboard +3.3V/+5V/2.5V/1.8V power supplies. MitySOM-C10L development kits also include access to memory controller IP and reference designs from Synaptic Labs LLC.

Development Kit Contents

  • MitySOM-C10L/G Base Board
  • MitySOM-C10L or MitySOM-C10G Module (See “Purchase” below)
  • UART to USB Cable
  • Ethernet cable
  • AC to DC 12V adapter
  • USB Drive with Development VM and Documentation
  • Instructions for accessing memory controller IP and reference designs from Synaptic Labs LLC specifically targeted to the MitySOM-C10L — click here to learn more
  • Quick Start Guide

Documentation available through Critical Link:

Block Diagram

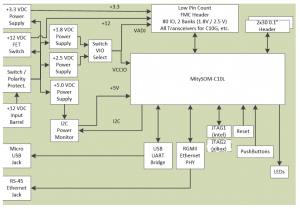

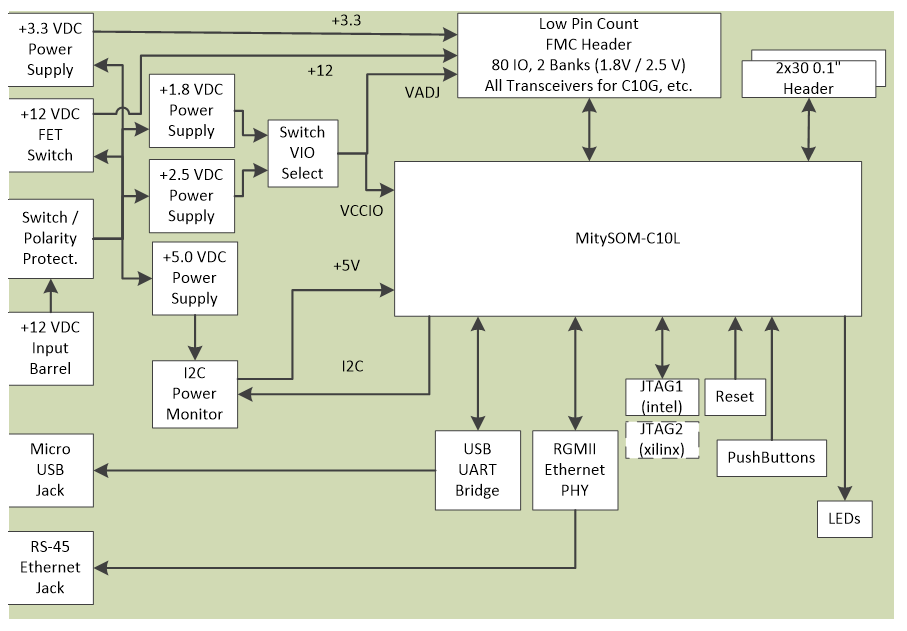

Click on the image below to view a block diagram for the MitySOM-C10L/G Development Kit:















Development Kit Photos

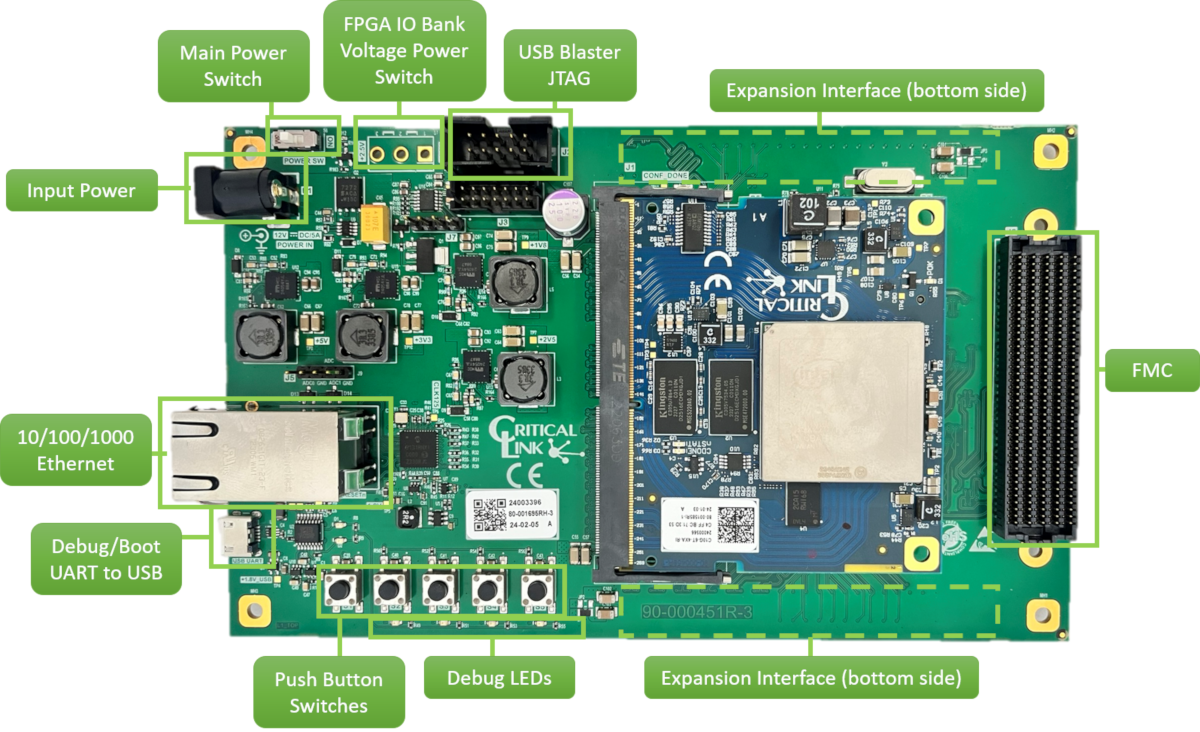

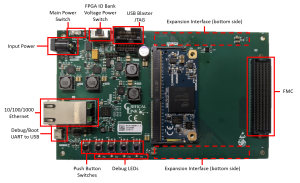

Click on thumbnail below to view an annotated photo of the Development Kit:

Cyclone 10 LP Development Kit















Cyclone 10 GX Development Kit





Documentation



MitySOM-C10G (featuring Altera Cyclone 10 GX) Documentation:



MitySOM-C10L (featuring Altera Cyclone 10 LP) Documentation:

Mechanical

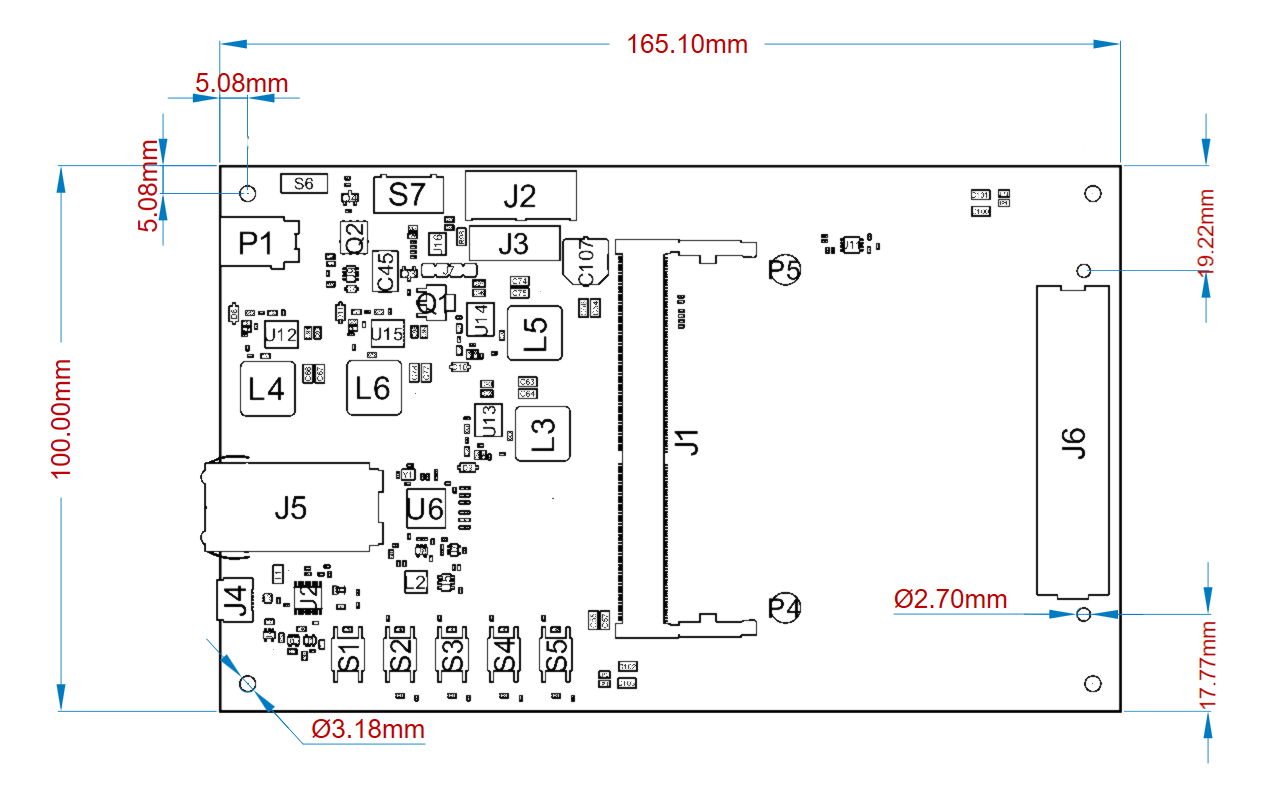

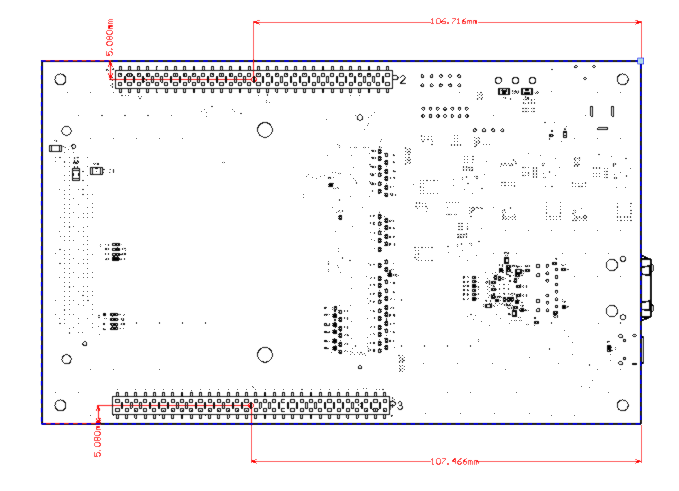

Dimensions Length Width
Inches 6.5 3.93
Millimeters 165.1 100.0



























Compatible SOM Modules



Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

  • Visit our MitySOM-C10L/G Intel Cyclone 10 Wiki to access:
    • Linux OS and board support package details, including source code
    • Product change notices
    • Base board design guide
    • Development kit base board design files
    • Software guide to getting started, tool chain, tips and how-to’s
    • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
    • Frequently asked questions
  • Visit our MitySOM-C10L/G Intel Cyclone 10 Forum (coming soon) to access:
    • Software, Hardware, and FPGA forums
  • Intel Cyclone 10 LP Documentation
  • Intel Cyclone 10 GX Documentation

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.



Related Products



Purchase



Dev Kit P/N
 Module Included Buy
80-0001650 C10L-7N-3XX-RI

(C10LP 16KLE, speed grade 7, 16MB SPI NOR, no HyperRAM, Industrial temp)

 Buy
80-001651 C10L-7Q-3X3-RI

(C10LP 80KLE, speed grade 7, 16MB SPI NOR, 32MB HyperRAM, Industrial temp)

 Buy
80-001738 C10G-6T-4XA-RI

(C10GX 220KLE, speed grade 6, 1GB DDR3L, 32MB NOR, Industrial temp)

 Buy

Find your local sales contact.
