MitySOM-AM62P System on Module
Production-ready system on modules based on Texas Instruments Sitara AM62Px processor

Overview

The MitySOM-AM62P family of system-on-modules features the Texas Instruments Sitara AM62Px Processor. The module includes (optional) eMMC FLASH, (optional) Octal or Quad SPI NOR FLASH, and LPDDR4 RAM memory subsystems. A MitySOM-AM62P provides a complete and flexible CPU infrastructure for highly integrated embedded systems.

The onboard AM62Px processor provides up to a Quad Core Cortex-A53 microprocessor unit (MPU) at up to 1.4GHz. This MPU can run a rich set of real-time operating systems containing software applications programming interfaces (APIs) expected by modern system designers. The ARM architecture supports several operating systems, including Linux.

In addition to the Cortex-A53, the AM62Px family also offers a Single Core Arm Cortex-R5F MCU at up to 800 MHz with 256KB SRAM, and a 3D graphics processing unit (GPU) supporting OpenGL ES 3.2 at 50 GFLOPS. The AM62Px also supports H264/H265 encode & decode, and can support three simultaneous displays.

Specifications

CPU

• TI AM62Px Application Processor
  • Up to Quad Arm Cortex-A53 MPU at up to 1.4 GHz
  • 32 KB L1 Program Cache per Core
  • 32 KB L1 Data Cache per Core
  • 512 KB Shared L2 Cache
  • JTAG Emulation/Debug
  • High security field securable option
• Single Core Arm Cortex-R5F MCU at up to 800 MHz with 256 KB SRAM
• 3D Graphics Processor Unit (GPU) supporting OpenGL ES 3.2 @ 50 GFLOPS (processor dependent)
• Video Encode/Decode Acceleration
• AM62Px Processor Choices
  • AM62P54 (Quad Core, 3D)
  • AM62P52 (Dual Core, 3D)
  • AM62P34 (Quad Core)
  • AM62P32 (Dual Core)

Memory

• Up To 8 GB LPDDR4 CPU RAM
  • 32 bits wide, 13.2 GB/sec transfer rate
• Up to 256 GB eMMC FLASH
  • 8 bits wide, HS400 speed
• Up to 256 MB Octal SPI NOR FLASH

Additional Features

• Arm Cortex-R5F processor for boot, resource, and power management
• Watchdog Timer
• Real Time Clock
• Secure Boot
• Crypto Hardware Accelerators (AES, SHA, DRBG, PKA)

Interfaces

• 2 10/100/1000 Mbps EMACs
• 1 MIPI CSI 1.3 Camera Input, 4 lanes up to 2.5 Gbps
• Multi Display Output
  • Up to 3840×1080
  • 1 24-bit RGB output
  • 1×4 lanes OLDI/LVDS
  • 1×4 lanes MIPI DSI
• 3 CAN ports
• 7 UARTs
• 2 USB 2.0 Dual Role Device Ports
• 3 multi-Channel MCASPs
• 2 4 lane MMC/SD/SDIO
• 3 SPI, 4 I2C, GPIO
• eHRPWM, eQEP
• Single 3.3V Input Power Supply
• Compatible with MitySOM-AM62x and MitySOM-AM62A

Additionally, most of the pin multiplexed signals can be configured as general purpose I/O signals with interrupt capability.

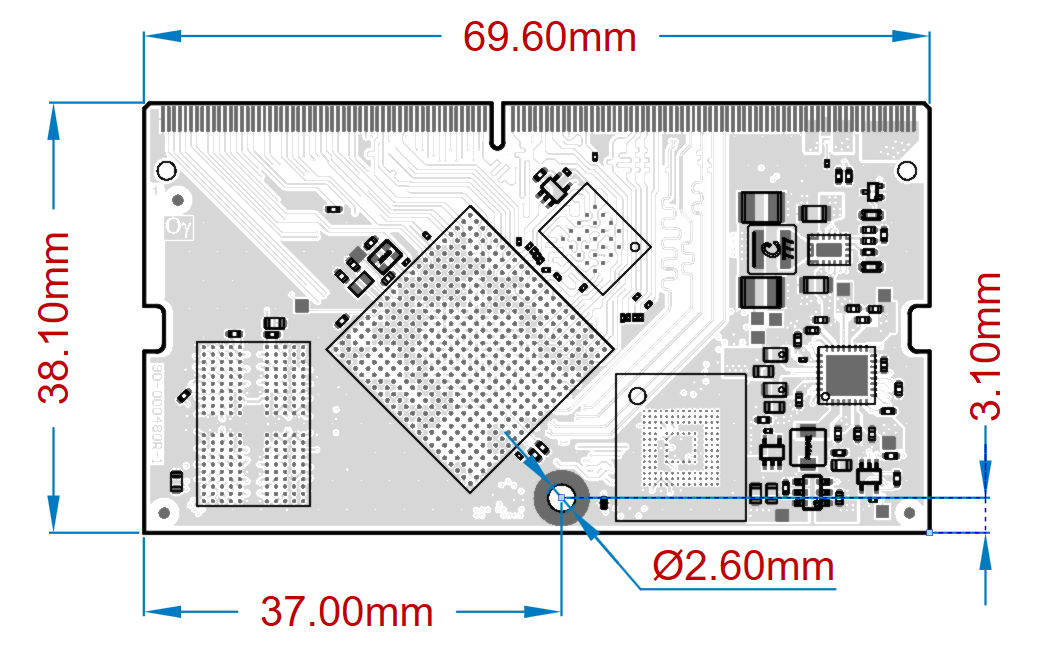

Mechanical

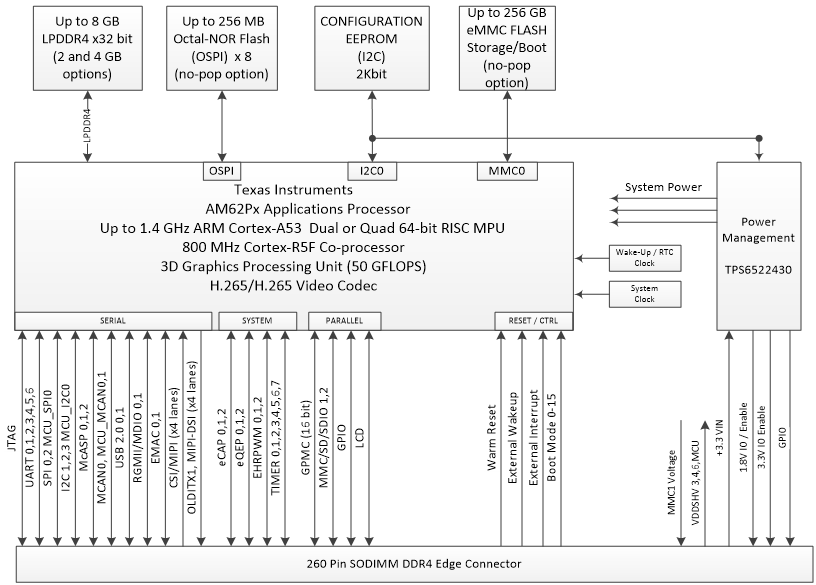

Block Diagram

MitySOM-AM62x/A/P Demos

This demo utilizes the YOLOX-S-Lite machine learning model for real-time vision-based people tracking with statistical insights such as total visitors, current occupancy, and visit duration. It also offers heatmap: highlighting frequently visited areas.

Featured Hardware: MitySOM-AM62A System on Module powering Critical Link’s Edge AI Camera

Example Applications: Retail, Building Automation, Safety/Security

Contact info@criticallink.com for more information

Our popular defect detection demonstration uses artificial intelligence at the edge with our Texas Instruments AM62Ax-based SOM. The demo utilizes the yolox-nano-lite-defect-detection model running on the AM62A C7x-MMA accelerator, delivering 65x faster performance vs running on the ARM A53 quad cores. A live video is displayed on the screen with visual indicators and statistics showing total parts, defect rate, and other analytics. Utilizing Edge AI Studio simplifies model training and deployment for new types of parts and materials.

Featured Hardware: MitySOM-AM62A System on Module powers Critical Link’s Edge AI Camera

Example Applications: Factory Automation, Production Yield/Quality Assurance

Contact info@criticallink.com for more information

Development Resources

Software Support

Users of the AM62Px are encouraged to develop applications using the MitySOM-AM62P software development kit provided by Critical Link. The SDK is an expansion of the Texas Instruments platform support package for the AM62Px and includes a Linux root filesystem/distribution and compatible gcc compiler tool-chain with debugger.

Development Kit

The MitySOM-AM62/AM62A/AM62P Development Kit supports Critical Link’s MitySOM-AM62, MitySOM-AM62A, and MitySOM-AM62P families of modules based on Texas Instruments Sitara AM62xx.

Each kit includes a compatible MitySOM-AM62/A/P module and a base board that together feature an array of interfaces and expansion headers including MIPI, Dual USB 2.0, Micro USB 2.0, Dual Gigabit Ethernet, Dual 10/100 Ethernet, HDMI, Dual CAN Bus, Audio In/Out, Dual OLDI/LCD Output Adapter, USB Debug UART, Micro SD Card, and WiFi/Bluetooth Module Adapter.

Click the image below to learn more about the development kit:

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

• Visit our MitySOM-AM62P Wiki to access:
  • Linux OS and board support package details, including source code
  • Product change notices
  • Base board design guide
  • Development kit base board design files
  • Software guide to getting started, tool chain, tips and how-to’s
  • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
  • Frequently asked questions
• Visit our MitySOM-AM62P Forum to access:
  • Software, Hardware, and FPGA forums
• MitySOM-AM62P Carrier Board Design Guide
• TI Sitara AM62Px Data Sheet
• TI Sitara AM62Px Product Page
• TI E2E Forums

Critical Link’s embedded design team also offers engineering services and other support options such as:

• Schematic design review for customer designed carrier boards
• Complete design review services
• Software development services, including custom BSP development
• Base board development services
• Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.
