MitySBC-A5E Single Board ComputerSingle Board Computer based on Intel Agilex 5E SoC. This product is currently in development - Sign up to receive updates

Product status: Prototypes Available



Overview

The MitySBC-A5E is a single board computer featuring an Intel / Altera Agilex 5E SoC (System on a Chip) and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Agilex 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone V SoC.

Prototypes of the MitySBC-A5E and MitySOM-A5E are currently available. Contact Critical Link at info@criticallink.com to get more information.



Specifications

Intel Agilex 5E SoC

  • Agilex 5 E-Series: 32mm x 32 mm package
  • FPGA fabric up to 656 KLE
  • Dual core Cortex-A55 + Dual core Cortex-A76

Memory

  • 8 GB LPDDR4 HPS
  • 8 GB LPDDR4 FPGA
  • eMMC
  • uSD
  • QSPI NOR for configuration

Power

  • 12Vdc Input, all supplies generated on board

Interfaces

  • FMC
  • MIPI (x4 lanes x 8)
  • QSFP+
  • 10M / 100M / 1G / 2.5G Ethernet
  • 10M / 100M / 1G Ethernet
  • Display Port
  • M.2
  • USB-C & USB 2



Applications

  • Industry 4.0
  • Medical Equipment & Imaging
  • Automated Test & Measurement
  • Embedded Instrumentation
  • Retail Automation
  • Smart City / Infrastructure
  • Broadcast & Pro-AV
  • Radar & Defense
  • FPGA Prototyping

Documentation

Block Diagram



Block Diagram for Critical Link's MitySBC-A5E, a single board computer based on the Intel Agilex 5E SoC with up to 656KLE and an array of other features

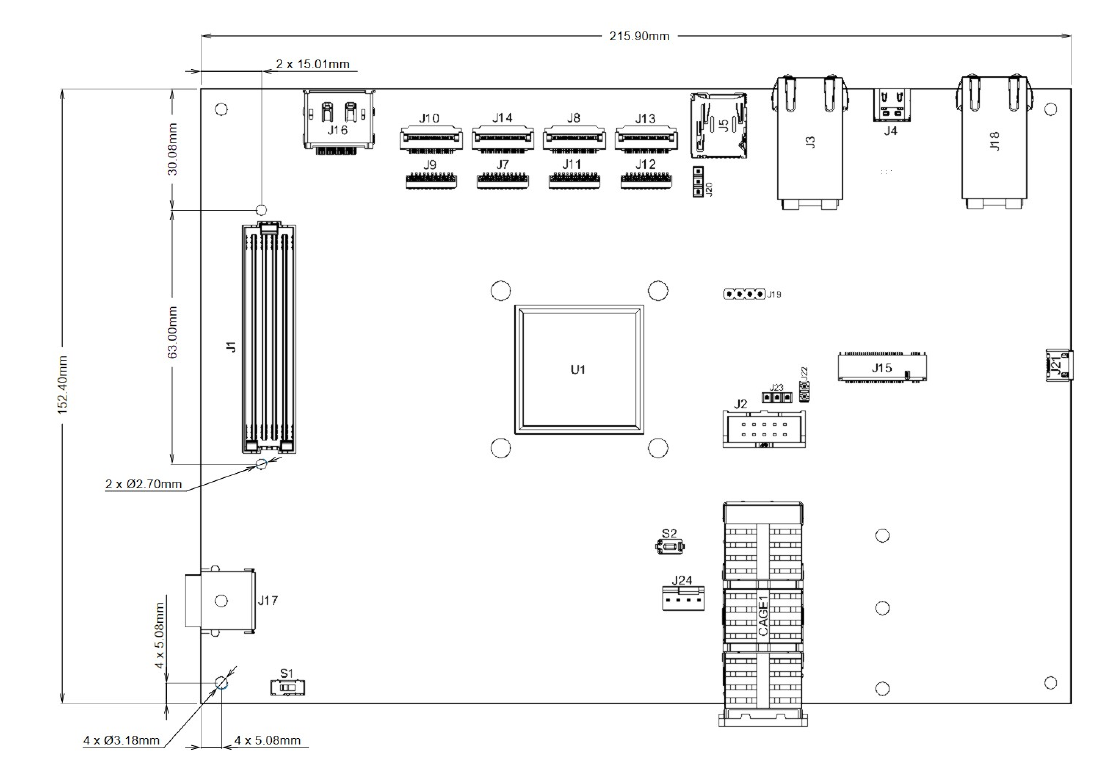

Mechanical

Dimensions Width Length
Inches 6.0  8.5
Millimeters 152.40 215.90



Click on the image below to enlarge:















Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

  • In the future, customers will be able to visit our MitySBC-A5E Wiki to access:
    • Linux OS and board support package details, including source code
    • Product change notices
    • Software guide to getting started, tool chain, tips and how-to’s
    • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
    • Frequently asked questions
  • Customers will also be able to visit our MitySBC-A5E Forum to access:
    • Software, Hardware, and FPGA forums
  • Intel Agilex 5E-series Documentation

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.



Related Products



Purchase

The following table lists the standard configurations for Critical Link’s Agilex 5E based Single Board Computer. For shipping status, availability, and lead time of these configurations, or to inquire about a custom configuration, please contact Critical Link at info@criticallink.com.

SBC P/N XCVR Max A76 Speed FPGA Size eMMC Flash FPGA RAM / HPS RAM Operating Temperature Buy
A5ED-B9-C7F-RC-SBC-X Yes 1.8GHz 656 KLE 64GB 8GB / 8GB 0C to +70C Buy
A5ED-B9-C7F-RC-SBC Yes 1.8GHz 656 KLE 64GB 8GB / 8GB 0C to +70C Buy



Development Kit Information

The following table provides ordering information for the MitySBC-A5E Development Kit, which includes everything needed to start development (SBC with power supply, necessary cables, fully loaded SD card). For shipping status, availability, and lead time, contact Critical Link at info@criticallink.com.

Development Kit P/N SBC P/N Included Operating Temperature Buy
80-001750 A5ED-B9-C7F-RC-SBC-X 0C to +70C Buy
80-001764 (coming soon) A5ED-B9-C7F-RC-SBC 0C to +70C Buy



Find your local sales contact or submit a request directly to Critical Link.
