MitySOM-AM62 System on ModuleProduction-ready Sitara AM62x-based System on Module

Product status: In Development



Overview

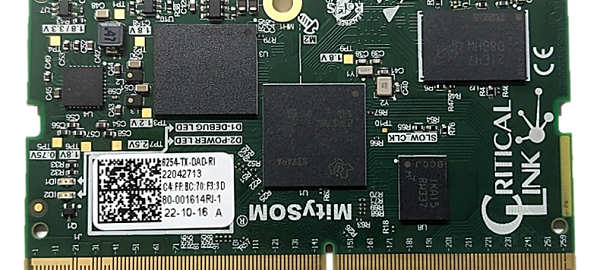

The MitySOM-AM62 family of system-on-modules features the Texas Instruments Sitara AM62x Processor. The module includes (optional) eMMC FLASH, (optional) Octal or Quad SPI NOR FLASH, and DDR4 RAM memory subsystems. A MitySOM-AM62 provides a complete and flexible CPU infrastructure for highly integrated embedded systems.

The onboard AM62x processor provides up to a Quad Core Cortex-A53 64-bit RISC processor with a NEON SIMD coprocessor. This microprocessor unit (MPU) can run a rich set of real-time operating systems containing software applications programming interfaces (APIs) expected by modern system designers. The ARM architecture supports several operating systems, including Linux and Android.

In addition to the Cortex-A53, the Sitara AM62x family also offers a Single Core Arm Cortex-M4F MCU at up to 400 MHz as well as a dual core 32 bit Programmable Real-Time Units (PRUs) that may be clocked at up to 333 MHz. The Cortex-M4F and the PRUs are RISC processors that run independently of the main Cortex-A53 MPU complex and have access to all the on-chip peripherals as well as all external memory. These can be used for any purpose.

Applications

  • Embedded Instrumentation
  • Industrial Automation
  • Industrial Instrumentation
  • Medical Instrumentation
  • Human Machine Interfaces (HMI)
  • Closed Loop Motor Control

Documentation

Specifications

CPU

  • TI Sitara AM62x Application Processor
    • Up to Quad Arm Cortex-A53 MPU at up to 1.4 GHz
    • 32 KB L1 Program Cache per Core
    • 32 KB L1 Data Cache per Core
    • 512 KB Shared L2 Cache
    • Advanced SIMD and floating-point extension (Arm Neon)
    • JTAG Emulation/Debug
  • Single Core Arm Cortex-M4F MCU at up to 400 MHz with 256 KB SRAM
  • Dual Core Programmable Real Time Unit (PRU) at up to 333 MHz
  • 3D Graphics Processing Unit supporting OpenGL ES 3.x – Processor Dependent
  • AM62x Processor Choices
    • AM6254 (Quad Core, 3D)
    • AM6252 (Dual Core, 3D)
    • AM6251 (Single Core, 3D)
    • AM6234 (Quad Core)
    • AM6232 (Dual Core)
    • AM6231 (Single Core)

Memory

  • Up To 4 GB DDR4 CPU RAM
    • 16 bits wide, 3.2 GB/sec transfer rate
  • Up to 32 GB eMMC FLASH
    • 8 bits wide, HS200 speed
  • Up to 256 MB Octal/Quad SPI NOR FLASH

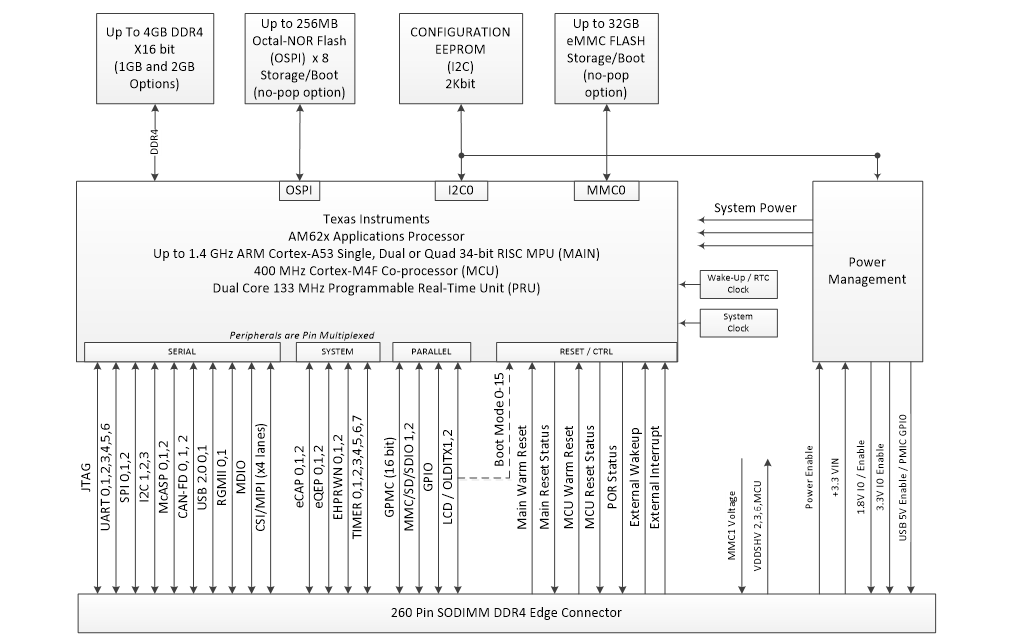

Block Diagram













Interfaces

  • 2 Universal Serial Bus (USB) 2.0 High-Speed port supporting host/peripheral/dual role mode
  • 3 Controller-Area Network (CAN) ports with Can-FD support
  • 3 Multichannel Audio Serial Ports (McASP)
  • 2 Industrial Gigabit Ethernet MAC’s (10/100/1000 Mbps)
  • 2 SD/SDIO 4-bit ports supporting UHS-I
  • 2 OLDI/LVDS display drivers
  • 1 24 bit RGB display driver
  • 1 MIPI Camera Serial Interface (CSI-Rx), 4 Lane with DPHY.
  • 3 Enhanced Capture (eCAP) Modules
  • 3 Enhanced PWM (ePWM) modules
  • 3 32-bit Enhanced Quadrature Pulse Encoder (eQPE) modules
  • 4 Timers
  • 3 Serial Peripheral (SPI) ports
  • 7 Universal Asynchronous Receive/Transmit (UART) ports
  • 3 Inter-Integrated Circuit (I2C) ports (I2C1, I2C2, & I2C3)
  • General Purpose Memory Controller (GPMC) interface
  • JTAG/Debugger port

Additionally, most of the pin multiplexed signals can be configured as general purpose I/O signals with interrupt capability.

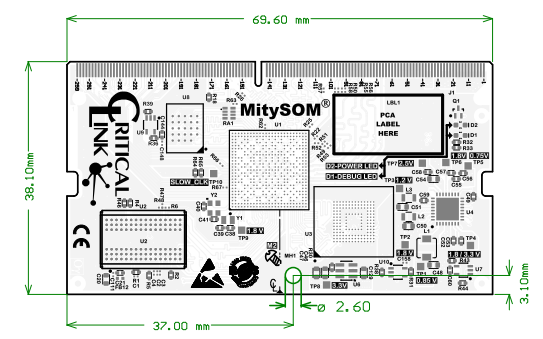

Mechanical

Dimensions Length Width
Inches 2.74 1.5
Millimeters 69.60 38.10

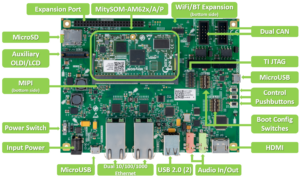

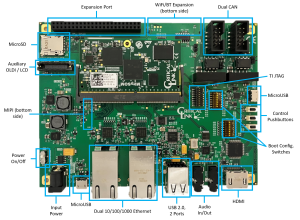

Development Kits

  • MitySOM-AM62 Development Kit – coming soon

Development Tools and Software

Software Support

  • Users of the AM62x are encouraged to develop applications using the MitySOM-AM62 software development kit provided by Critical Link. The SDK is an expansion of the Texas Instruments platform support package for the AM62x and includes a Linux root filesystem/distribution and compatible gcc compiler tool-chain with debugger.

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.



Related Products

Purchase

The following table lists the standard configurations for Critical Link’s Sitara AM62x based modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.

Module P/N A53 Cores GPU Max Cortex-A53 Speed NOR Flash eMMC DDR4 RAM Operating Temperature Buy
6231-HX-XXA-RC 1 No 800 MHz N/A N/A 1G 0C to +70C Buy
6231-HX-XXA-RI 1 No 800 MHz N/A N/A 1G -40C to +85C Buy
6251-HX-XXD-RC 1 Yes 800 MHz N/A N/A 2G 0C to +70C Buy
6251-HX-XXD-RI 1 Yes 800 MHz N/A N/A 2G -40C to +85C Buy
6252-IX-XXD-RC 2 Yes 1 GHz N/A N/A 2G 0C to +70C Buy
6252-IX-XXD-RI 2 Yes 1 GHz N/A N/A 2G -40C to +85C Buy
6252-IX-X7D-RC 2 Yes 1 GHz N/A 8GB 2G 0C to +70C Buy
6252-IX-X7D-RI 2 Yes 1 GHz N/A 8GB 2G -40C to +85C Buy
6254-TX-XXD-RC 4 Yes 1.4 GHz N/A N/A 2G 0C to +70C Buy
6254-TX-XXD-RI 4 Yes 1.4 GHz N/A N/A 2G -40 C to +85C Buy
6254-TX-X8E-RI 4 Yes 1.4 GHz N/A 16GB 4G -40C to +85C Buy
