Product status: In Development – Contact info@criticallink.com for details
Overview
The MitySOM-QC6490 is a system on module family featuring a Qualcomm QCS6490 processor with on-board power supplies, an LPDDR5 RAM memory subsystem, and a UFS configuration memory. This product family is in development now — contact info@criticallink.com for details!
Qualcomm QCS6490 is a powerful application processor designed for Enterprise & IoT applications
- Includes support for 5G and Wi-Fi on the development board
- AI Engine brings the total performance up to 12 TOPS
- Expanded interfaces for industrial use cases
- Long-term support for Android OS upgrades, Linux, Ubuntu, Windows 11 IoT Enterprise, security updates, and enterprise-grade hardware
- Long-term support expected through July 2036 with the Product Longevity Program
Specifications
QCS6490 SoC Processor
- Qualcomm Kryo 670 CPU: 1x 2.7GHz, 3x 2.4GHz, 4x 1.9GHz
- Qualcomm Adreno 643 GPU
- Qualcomm Adreno 633 VPU (video encode 4K30 / decode 4K60)
Memory
- 8 GB LPDDR5
- 256GB Flash
- SD/eMMC
- EEPROM for configuration
Power
- 5-12Vdc Input, all supplies generated on board
Interfaces
- 2x PCIe Gen 3 (1x 1 lane, 1x 2)
- 5x MIPI x4 input + DSI output
- USB 3.1 Gen 2, USB 2.0
- Display Port
- 8x I2C + 2x I2C Audio
- 3x SPI
- 3X UART
- 3x I3C
- 1x QLINK x5
- SLIMbus
- SoundWire
- QDSS
- 68 GPIO
Mechanical
- 45mm x 45mm (1.77″ x 1.77″)
Applications
- High End CPU or Graphics / UI
- Multi-screen signage
- Menu boards
- Kiosks
- High end / resolution displays
- Android-based UIs
- MIPI displays or DisplayPort
- Handheld / Mobile Devices
- Battery operated instruments
- Networked / IIoT devices
- Multiple communication channel instruments
- Embedded MIPI Camera Applications
- “Realtime” Encode / Decode capability
- Up to 5 cameras (4 simultaneously)
Documentation
- MitySOM-QC6490 Family Overview
- MitySOM-QC6490 Datasheet – coming soon
- MitySOM-QC6490 Development Kit datasheet – coming soon
- Carrier Board Design Guide – coming soon
- MitySOM-QC6490 Engineering Support Wiki – coming soon
- MitySOM-QC6490 Product Change Notifications (PCN) – coming soon
- Qualcomm QCS6490 Product Page

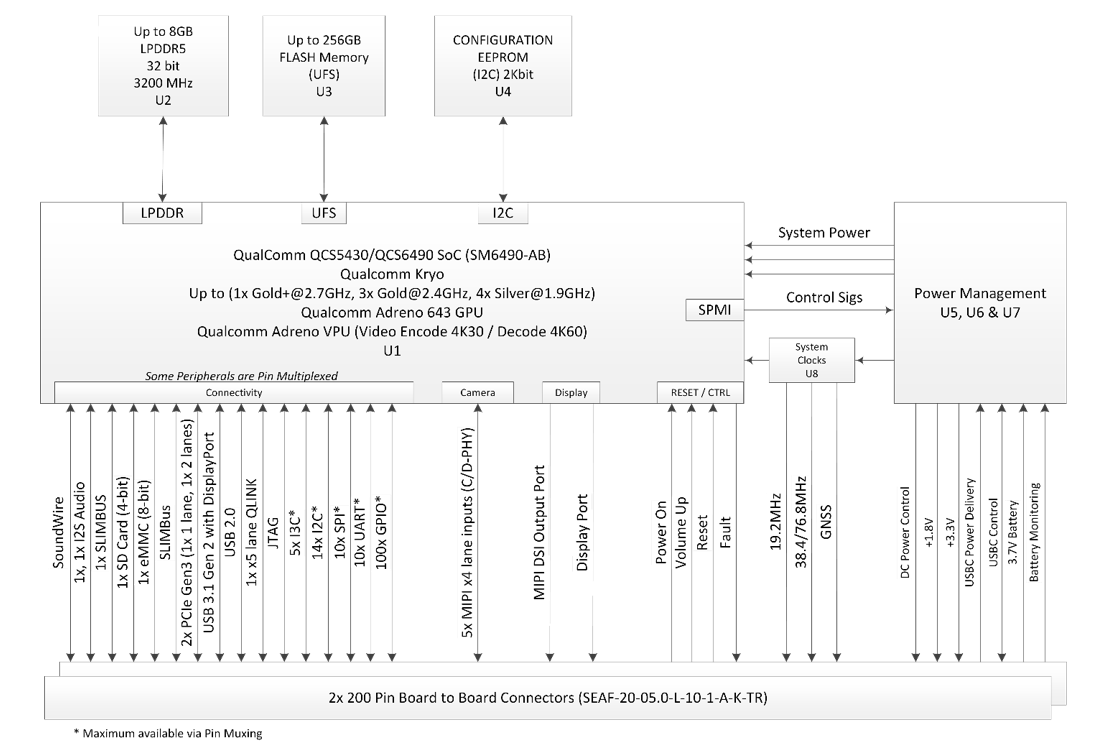

Block Diagram
Click on the MitySOM-C6490 block diagram below to expand.
Development Kit
Click on the MitySOM-C6490 development kit block diagram below to expand.
Development Board Interfaces:
On-board IO
- Wifi / BT Support
- GPS Support
- Path for Ethernet Support (via. PCIe)
- 5x Camera MIPI interfaces (D-PHY v1.2 or C-PHY v1.2)
- 1x USB-C (10 Gbps, supporting DisplayPort like Thunderbolt)
- 1x Micro USB-B (2.0)
- 1x MIPI DSI interfaces (LCM)
- 1x eDP interface
- QDSS header (Qualcomm Debug SubSystem)
- SD-Card
- 8-bit eMMC (Potentially no-pop by default)
- USB Console
- Audio Line In / Out (combined jack)
Expansion Headers
- 0.1” Dual Row Headers (multiple)
- Expose unused GPIO pins available on the SOM
- Expose unused audio pins available on the SOM
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
-
- In the future, customers will be able to visit our MitySOM-QC6490 Wiki (coming soon) to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Customers will also be able to visit our MitySOM-QC6490 Forum (coming soon) to access:
- Software, Hardware, and FPGA forums
- Qualcomm QCS6490 Product Page
- In the future, customers will be able to visit our MitySOM-QC6490 Wiki (coming soon) to access:
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase
Standard configurations for the MitySOM-QC6490 are currently in development. Contact Critical Link at info@criticallink.com to get more information or share your specifications.
