Overview

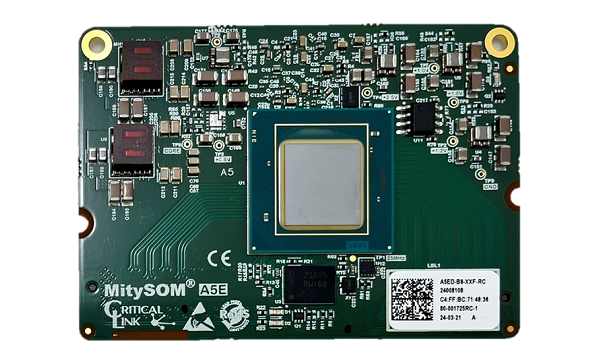

The MitySOM-A5E Mini is a system on module featuring an Altera Agilex 5E SoC (System on a Chip) and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Altera Agilex 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone V SoC.
Prototypes of the MitySOM-A5E Mini and the MitySBC-A5E are currently available. Contact Critical Link at info@criticallink.com to get more information.
Specifications
Altera Agilex 5E SoC
- Agilex 5E-Series: 23mm x 23mm package
- FPGA fabric 85KLE up to 656 KLE
- Dual core Cortex-A55 + Dual core Cortex-A76
- Up to twelve transceiver pairs at 17.16/28.1 Gbps
Memory
- 8 GB LPDDR4
- SD/eMMC
- uSD
- QSPI NOR for configuration
Power
- 5-12Vdc Input, all supplies generated on board
Interfaces
- MIPI (x4 lanes x 7)
- UART
- SPI
- I2C
- USB2
- RGMII
- Ethernet
- Display Port
- 48 LVDS pairs
- GPIO
Applications
- Artificial Intelligence
- Video & Vision Analytics
- Biometrics
- Radios & Communications
- Automated Test & Measurement
- Robotics
- Industry 4.0 / Industrial IOT
- Medical Equipment & Imaging
- Process Automation
- Equipment / Condition Monitoring
Documentation
- MitySOM-A5E Mini Datasheet
- MitySOM-A5E Development Kit datasheet
- MitySOM-A5E Family Overview
- Carrier Board Design Guide – coming soon
- MitySOM-A5E Engineering Support Wiki
- MitySOM-A5E Product Change Notifications (PCN)
- Altera Agilex 5 E-Series Product Page

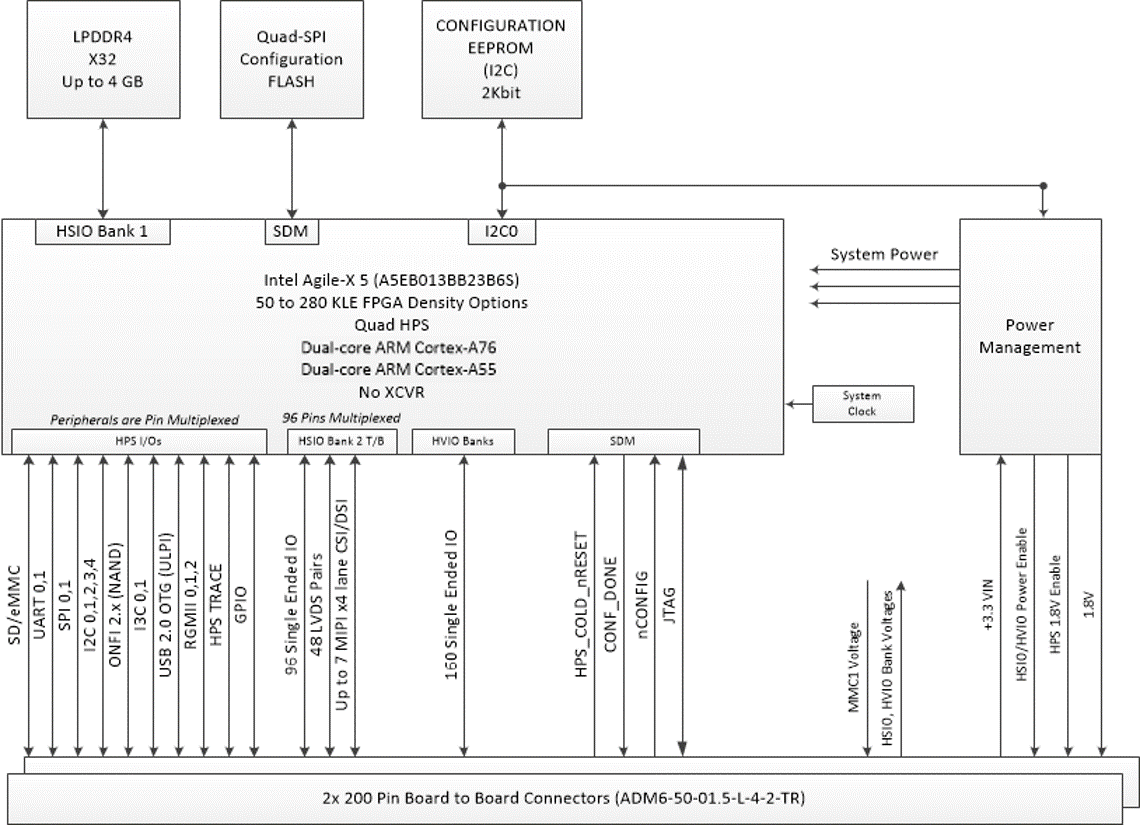

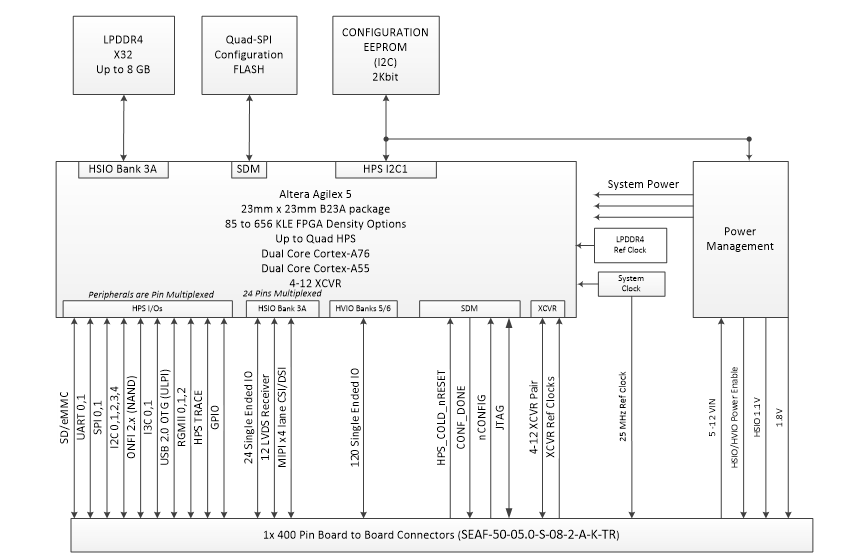

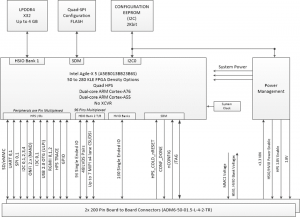

Block Diagram

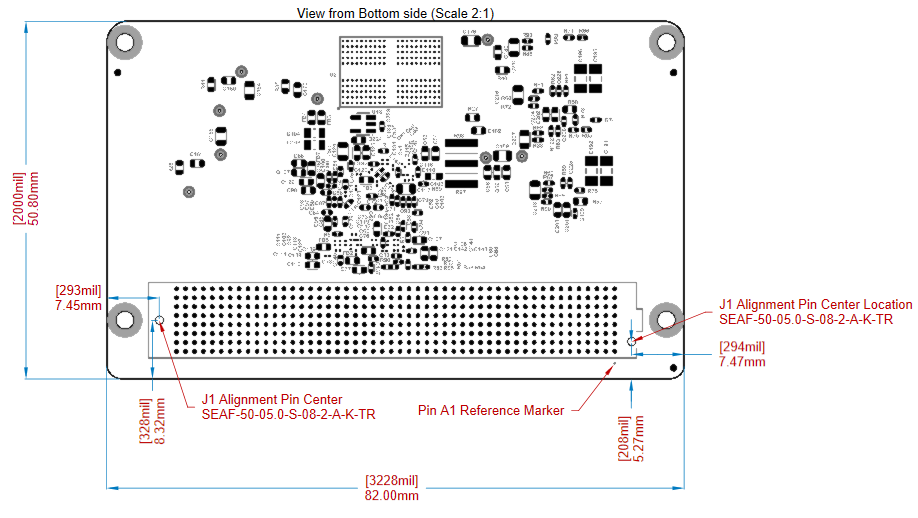

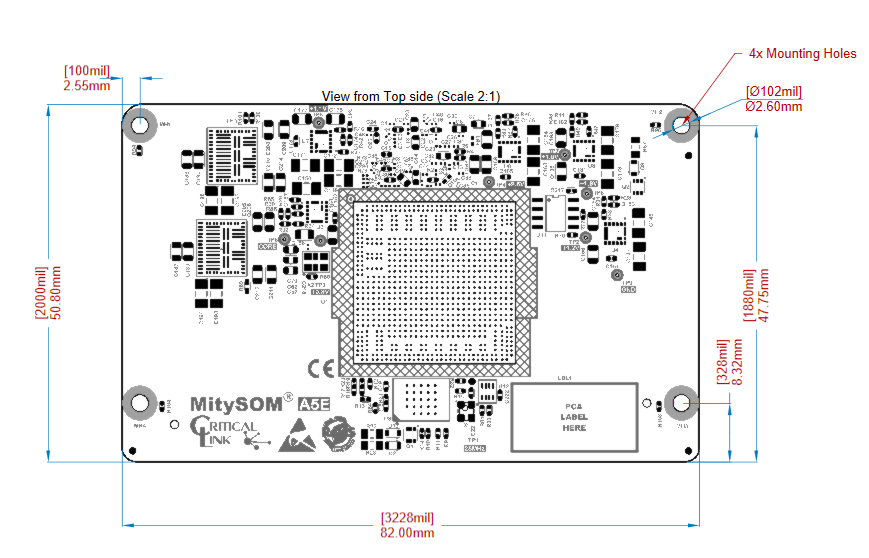

Mechanical
| Dimensions | Length | Width |
| Inches | 3.2 | 2.0 |
| Millimeters | 82.0 | 50.8 |

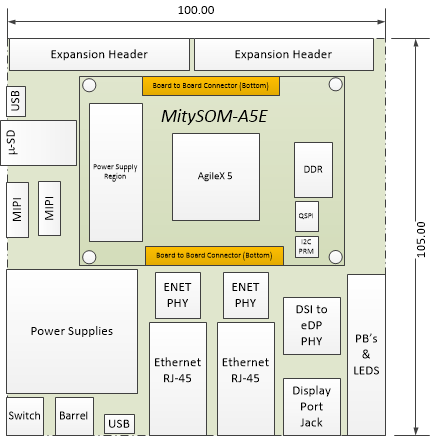

Development Kit
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- In the future, customers will be able to visit our MitySOM-A5E Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Customers will also be able to visit our MitySOM-A5E Forum to access:
- Software, Hardware, and FPGA forums
- Altera Agilex 5E-series Documentation
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
