Overview
Product status: In Development – Contact info@criticallink.com for more info
The MitySOM-A5E Standard is a system on module featuring an Altera Agilex 5E SoC (System on a Chip) and includes up to 656KLE FPGA fabric, dual core Cortex-A55 + dual core Cortex-A76, on-board power supplies, and memory subsystems. The Altera Agilex 5 delivers 2.5x the performance at 50% less power consumption versus the Cyclone V SoC.
Prototypes of the MitySOM-A5E Standard will be available soon, or you can get started with the MitySOM-A5E Mini that is currently available. Contact Critical Link at info@criticallink.com to get more information.
Applications
- Artificial Intelligence
- Video & Vision Analytics
- Biometrics
- Radios & Communications
- Automated Test & Measurement
- Robotics
- Industry 4.0 / Industrial IOT
- Medical Equipment & Imaging
- Process Automation
- Equipment / Condition Monitoring
Specifications
Altera Agilex 5E SoC
- Agilex 5E-Series: 32mm x 32mm package
- FPGA fabric up to 656 KLE
- Dual core Cortex-A55 + Dual core Cortex-A76
- Up to 24 transceiver pairs
Memory
- Up to 8 GB HPS FPGA shared LPDDR4
- 32 bits wide
- 10.6/14.9 GB/sec burst rate*
- Up to 8 GB FPGA LPDDR4
- 32 bits wide
- 10.6/14.9 GB/sec burst rate*
- 32 MB QSPI Configuration FLASH
Power
- 5-12Vdc Input, all supplies generated on board
FPGA IO
- 120 User FPGA HVIO Pins
- 1.8/2.5/3.3V CMOS
- 216 User FPGA HSIO Pins
- 24 1.1V Single Ended
- 2 96 pin banks supporting 1.1V/1.2V/1.3V standards
- Up to 108 LVDS pair supported
- MIPI D-PHY to 2.5/3.5 Gbps
- 48 HPS IO Pins
- Up to 24 Transceiver Pairs
HPS IO
- Up to 3 10/100/1000/2500 Mbps Ethernet MACs with TSN Support
- 1 USB 2.0 On-The-Go (OTG) Port
- 1 USB 3.1 Gen 1 Superspeed Port
- 2 UARTs
- 1 MMC/SD/SDIO
- 2 SPI Masters and 2 SPI Slaves
- 5 I2C/2 I3C controllers

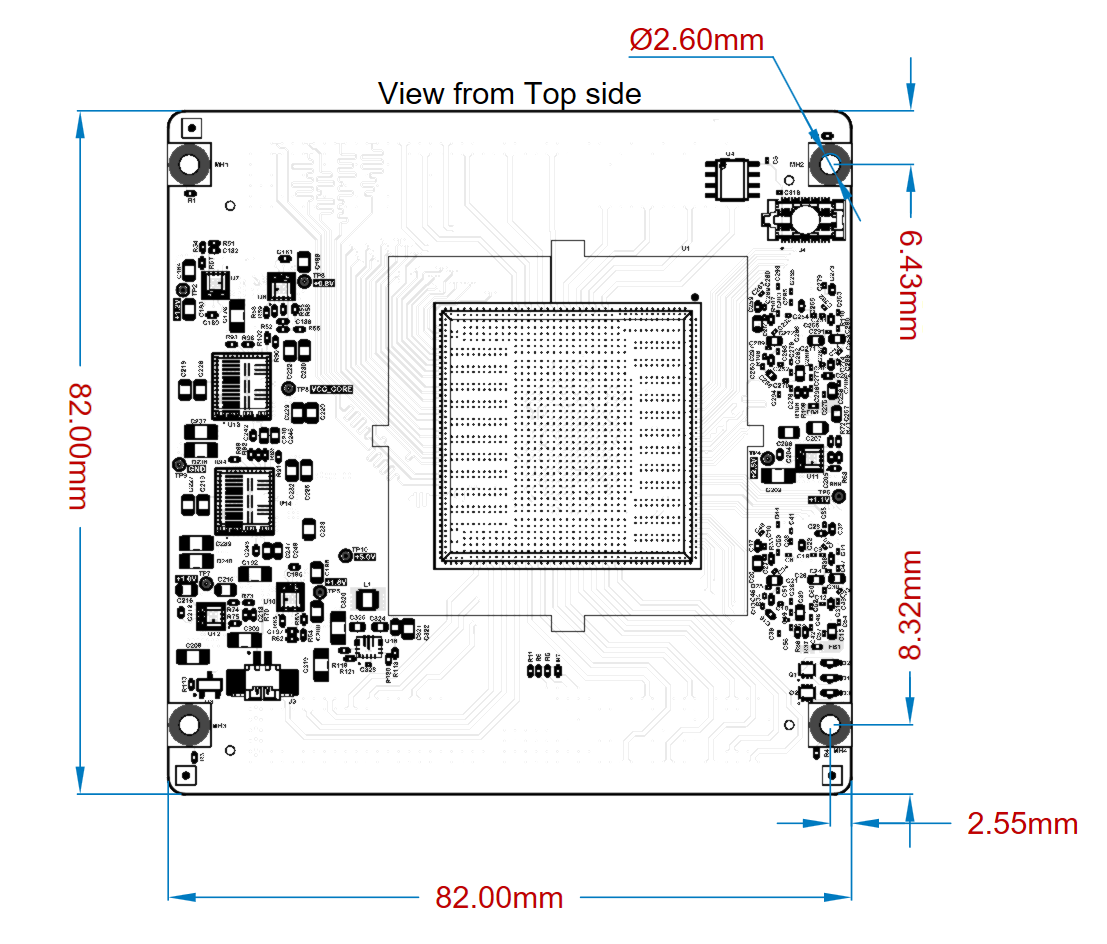

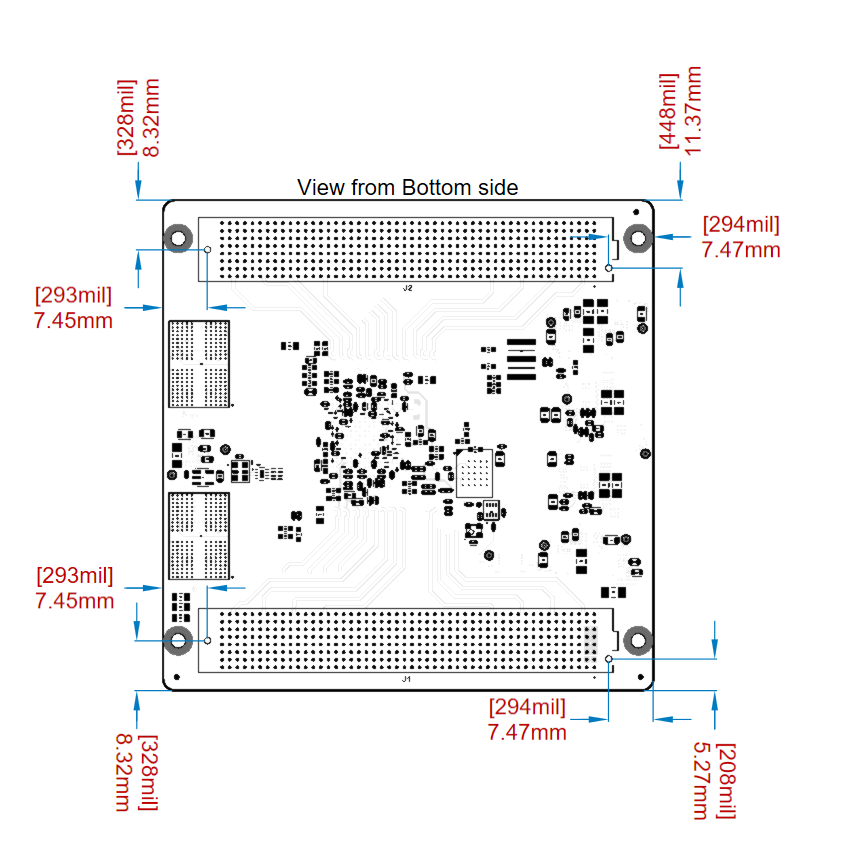

Mechanical
| Dimensions | Length | Width |
| Inches | 3.2 | 3.2 |
| Millimeters | 82.0 | 82.0 |

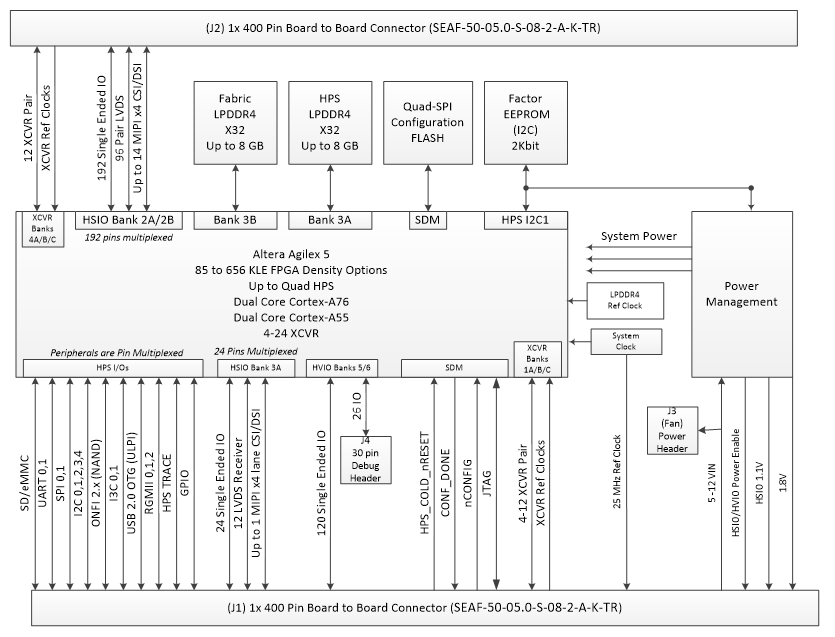

Block Diagram
Documentation
Development Resources

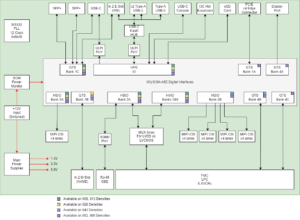

Development Kit

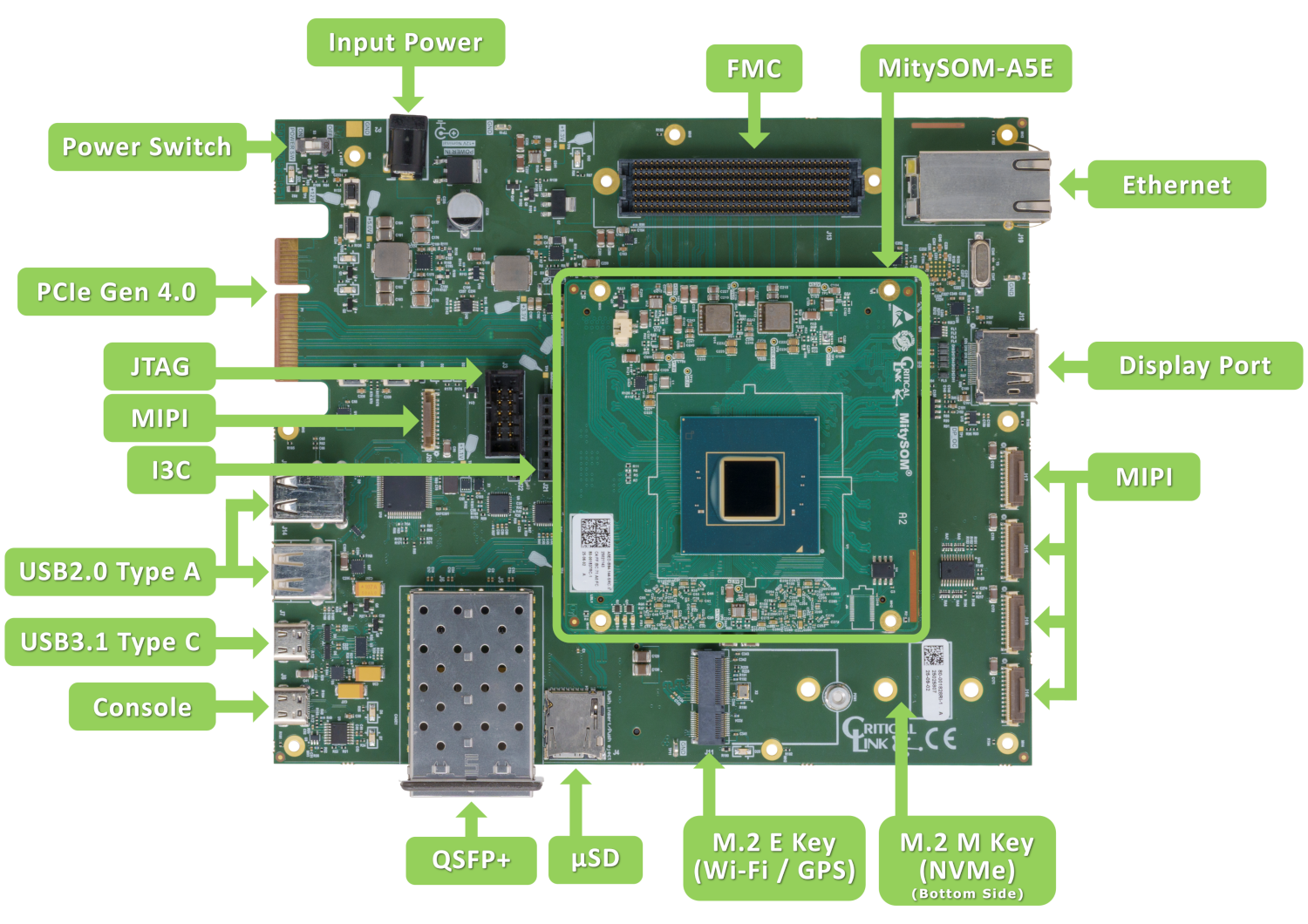

The MitySOM-A5E Development Kit features a 32mm x 32mm package Altera Agilex 5 FPGA and supports Critical Link’s MitySOM-A5E system on modules.
Each Development Kit comes complete with all the connectivity needed in any application well suited for the MitySOM-A5E, including DisplayPort, USB 3.1 Gen 1, Gigabit Ethernet, two SFP+ (supporting up to 10 Gb Ethernet), four x4 lane MIPI CSI camera inputs, and PCIe 4.0. Additionally, the development kit is equipped with a USB-C console interface, Micro-SD card storage, and a LPC FMC expansion interface providing support for additional I/O signals and up to 8 transceiver pairs.
The on-board DisplayPort supports DisplayPort 1.4 for a total bandwidth of 32.4Gbps with 32 audio channels and 8K video at 60Hz with 10-bit color resolution.
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- In the future, customers will be able to visit our MitySOM-A5E Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Customers will also be able to visit our MitySOM-A5E Forum to access:
- Software, Hardware, and FPGA forums
- Altera Agilex 5E-series Documentation
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The following table lists the standard configurations for Critical Link’s MitySOM-A5E Altera Agilex 5 based modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Orderable P/N | FPGA KLE | HPS / CPU Speed Grade | No. XCVRs | HPS RAM (32-bit) | FPGA RAM (32-bit) | On-board Flash | Operating Temperature | Buy |
| A5ED-B64-144-SRI | 656 | 4 | 24 | 4 GB | 4 GB | 32MB | -40C to +85C | Buy |
| A5ED-B46-144-SRI | 434 | 6 | 16 | 4 GB | 4 GB | 32MB | -40C to +85C | Buy |
