MityCAM-C50000Embedded Vision Platform with ams / CMOSIS CMV50000 47.5MP CMOS image sensor

Contact Critical Link for product availability

Overview

The MityCAM-C50000 features a high-performance 47.5MP CMV50000 CMOS image sensor from ams / CMOSIS. The camera is available with an AIA USB 3.0 Vision Interface (U3V), and a video output interface.

Combined with Critical Link’s software tools designed for our Arria 10 based processor card, the MityCAM-C50000 makes sensor evaluation and product integration quick and easy. Critical Link also supports a board set version of the camera for customers designing their own mechanicals or managing other integrations; contact us for more details.

Applications

  • Machine Vision
  • Industrial Inspection
  • Flat Panel Display Inspection
  • Document Scanning
  • Aerial Mapping and Surveillance
  • Video/Broadcast

Documentation

Specifications

Sensor Specification

Sensor ams/CMOSIS CMV50000
Active Pixels 7920 (H) x 6004 (V)
Pixel Size 4.6um x 4.6um
Image Area
36.5mm (W) x 27.6mm (H)
Frame Rate (Global Shutter)
30fps, 12-bit output mode
Dark Current @ 25C
66.2e-/s
Dynamic Range
64dB-Normal
68dB-Binned
Extended Dynamic Range
Up to 90dB (with additional processing)
Chroma
Mono or Color

System Noise

Read-out Noise (@30fps)
8.8 e¯

Data Acquisition Modes

Global Shutter
For longer exposures or synchronizing with an external shutter

On-board Processor (MitySOM-A10S)

CPU Engine
Intel/Altera Arria 10 SoC – Dual core ARM and up to 480KLE FPGA fabric
Full Featured SDK
Supports rapid application development

Mount

  • Full cameras feature a standard F mount lens, while the board set version allows quick and easy custom integration into your product. Please contact Critical Link for more information.

Environment

Temperature
0°C to +40°C
Humidity
<80% non-condensing

Electrical

Voltage
12 VDC



Quantum Efficiency

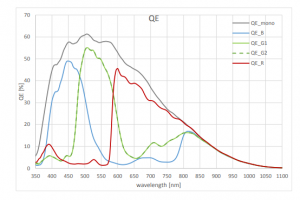

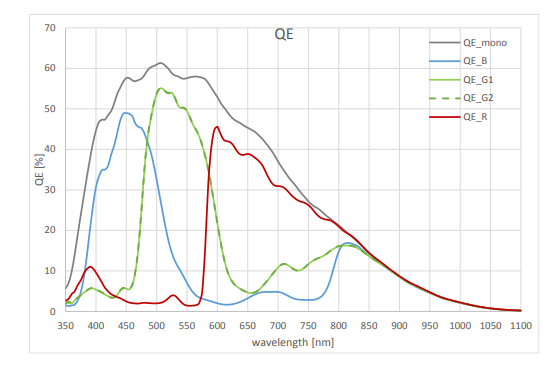

Quantum efficiency curve for AMS / CMOSIS CMV 50000 CMOS image sensor

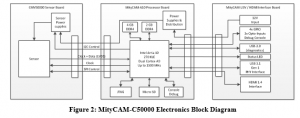

Block Diagram



Interfaces

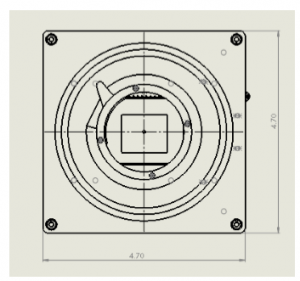

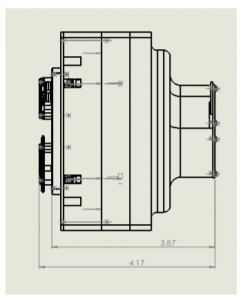

Mechanical



  • Measurements are in inches
Dimensions (with Compact Enclosure)
119.3mm x 119.3mm x 105.9mm  (4.7″ x 4.7″ x 4.17″)
Weight (with Compact Enclosure)
1248g (44oz)



Software

MityCAM image acquisition can be done with MityViewer, Critical Link’s software solution for optimal throughput and complete functionality.

We recommend visiting the MityCAM wiki page on our engineering support site and registering for an account in advance of receiving your MityCAM. Once your registration is confirmed, you can download the latest version of our MityViewer software from the wiki page, which will be required to start capturing images.
