Home / Products / CMV50000 Sensor Board

CMV50000 Sensor Boardams / CMOSIS 47.5MP CMV50000 Sensor Board

Overview

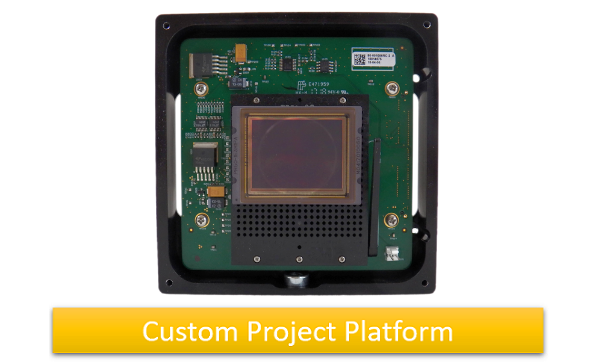

  • Sensor board with ams / CMOSIS 47.5MP CMV50000 Sensor
  • Rugged board-to-board connector provides stable connection to a variety of compatible processor boards.
  • Board measures 2.5″ (63cm) x 2.5″ (63cm)

Applications

  • Embedded Vision
  • Machine vision
  • Video/Broadcast
  • Security/Automotive
  • High-end inspection
  • Aerial mapping
  • Document scanning
  • ITS
  • Scientific
  • 3D Imaging

Documentation

Specifications

Sensor Specification

Sensor AMS CMV50000
Type Front-illuminated
Active Pixels 7920 (H) x 6004 (V)
Pixel Size 4.6um x 4.6um
Image Area
36.4mm (W) x 27.6mm (H)
Frame Rate (Global Shutter)
30fps
Dark Current @ 20C
0.24e-/s
Dynamic Range
64dB
Chroma
Mono or Color
Temperature -30°C to +70°C

Quantum Efficiency

CMV50000 Quantum Efficiency



Related Products

Purchase


The following table lists configuration options for the CMV50000 Sensor Board. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.

 Title
Chroma
Buy
CMV50000 Sensor Board Color Request Quote
CMV50000 Sensor Board Mono Request Quote



Find your local sales contact.
