C10 CoaXpress Camera Processor BoardProduction-ready combination processor and interface board for embedded imaging and machine vision applications

Overview

  • Combination processor and interface board for embedded imaging and machine vision applications
  • Production-ready solution for industrial-performance applications
  • 4-channel CoaXpress high speed interface
  • On-board processing with Intel/Altera Cyclone 10 GX: 85KLE FPGA fabric with high-bandwidth transceivers
  • Cyclone® 10 GX device family consists of high-performance and power efficient FPGAs up to 220KLE with higher core, transceiver, and I/O performance than the previous generation of low cost FPGAs.
  • The Intel/Altera Cyclone 10 GX devices are ideal for high bandwidth, low-cost applications in diverse markets.
  • High-density, rugged board-to-board connector provides stable connection and easy integration to a variety of compatible sensor boards. Alternatively, we will provide a complete ICD spec for your own board, or we can custom-design one for you.
  • Board measures 3.15″ (80cm) x 3.15″ (80cm)
  • Integrated power switch
  • Runs Embedded Linux out of the box, support for OpenCL and HLS available

Applications

  • Embedded Imaging
  • Machine Vision
  • Smart Vision Cameras
  • Robotics
  • Broadcast
  • Pro-AV Systems
  • Test and Measurement
  • Medical Diagnostics

Documentation

Specifications

FPGA

FPGA Fabric
Max Logic Elements 220kLE
Global Clocks     32
Max M20K Memory 11,740Kb
Max MLAB Memory 1,690Kb

Memory

System Memory
RAM 16MB HyperRAM (350 MHz)


Block Diagram

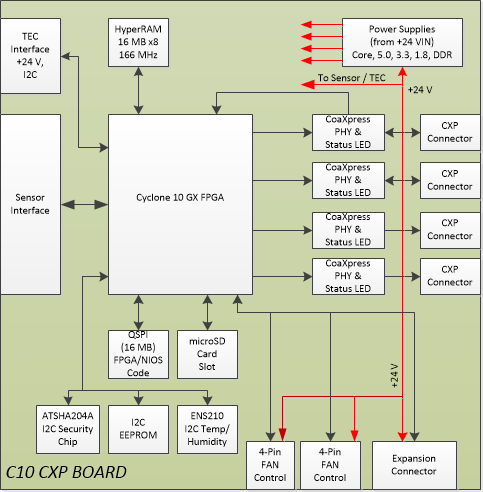

C10 CoaXpress Processor Board Block Diagram

Interfaces

CoaXpress (1, 2 or 4 channel)
25 LVDS input pairs 1 MMC/SD/SDIO 5 I2C controllers

Mechanical

Dimensions Length Width
Inches 3.15 3.15
Millimeters 80 80



Development Tools and Software

Software Support

  • NIOS Bare Metal

Development Tools

  • Altera Quartus Prime Pro version 18.X or higher
  • Altera NIOS development tools

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

  • Visit our Wiki to access:
    • Linux OS and board support package details, including source code
    • Product change notices
    • Base board design guide
    • Development kit base board design files
    • Software guide to getting started, tool chain, tips and how-to’s
    • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
    • Frequently asked questions
  • Visit our Forum to access:
    • Software, Hardware, and FPGA forums
  • Intel Cyclone 10 GX FPGAS Support Documentation

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.
