MityCCD-E3011-FIFront-illuminated CCD Camera

Contact Critical Link for product availability

Overview

Features

  • Front-illuminated sensor
  • Large pixel size: 26 x 26 micron
  • Wide dynamic range
  • Low dark current
  • TE-Cooled to -40°C

Applications

  • Raman Spectroscopy
  • Low-light Imaging
  • Industrial Inspection
  • Semiconductor Inspection
  • Portable Scientific Imaging

Technical Documents

MityCCD Family-level Documentation



Specifications

Sensor Specification

Type Front-illuminated
Pixel Size 26 um x 26 um
Image Area 26.6 mm (H) x 6.7 mm (V)
Pixel Array 1024 (H) x 256 (W)
Well Capacity
500 ke¯
Dark Current
.05 e¯/pixel/sec  (typ. @ 0 °C)

System Noise

Noise (typ)
12.4 e¯ RMS @ 500 KHz

Data Acquisition & Binning Modes

Area Read
Full image and sub-area (any rectangular region of the CCD)
Full Binning
Standard CCD binning (all CCD rows summed in read-out register)
Partial Binning
Some rows summed in CCD and partial results summed in MityDSP
Area Mask Binning
Vertical and horizontal binning in MityDSP
Multiple Binning Patterns
Multiple Binning patterns stored in memory and swapped in as directed on a cycle basis

On-board Processor (MityDSP)

CPU Engine
Floating-point DSP, FPGA, FLASH, SDRAM (up to 32MB)
Full Featured SDK
Supports rapid application development
Applications
Peak finding, signature analysis, general purpose computing, etc.

Cooling

Type
Thermo-electric to -40 °C (from 20 °C ambient) +/- .1 °C

Mount

Environment

Temperature
-20°C to +30°C
Humidity
10% to 90% non-condensing

Electrical

Voltage
110V / 220V or 12-24 VDC

Quantum Efficiency

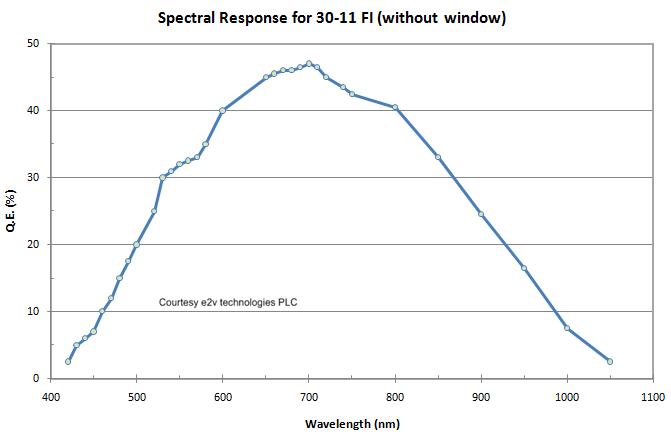

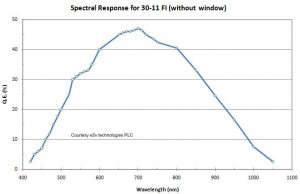

E3011-FI Spectral Response

Block Diagram

MityCCD-H7031-Block-Diagram



Interfaces

USB Supports USB 2.0
Ethernet
Supports full TCP / UDP stack over 10 / 100 Base T
Digital I/O
Supports external triggering and control of outboard devices

Mechanical

Dimensions
98mm x 100mm x 90mm  (3.86″ x 3.94″ x 3.54″)
Weight
750g  (26oz.)

Development Tools and Software

Purchase

Camera Model Image Area Active Pixels Purchase
Width (mm) Height (mm) Horizontal Vertical
MityCCD-E3011-FI 26.6 6.7 1024 256 *

Find your local sales contact.

*Note: Contact Critical Link for ordering information.
