CIS2521 Sensor BoardProduction-ready BAE / Fairchild Imaging CIS2521 CMOS Sensor Board

Overview

  • Production-ready sensor board with 5MP BAE / Fairchild Imaging CIS2521 CMOS sensor
  • Sensor available in standard package, mono or color, with fixed or temporary window
  • Provides connections for TEC for sensor cooling/stabilization
  • Rugged board-to-board connector provides stable connection to a variety of compatible processor boards
  • Board measures 2.5″ (63cm) x 2.5″ (63cm)

Applications

  • Embedded Vision
  • Scientific
  • Medical
  • Industrial
  • Professional Video
  • High-End Security

Documentation

Specifications

Sensor Specification

Sensor Fairchild Imaging CIS2521
Type Front-illuminated
Active Pixels 2560 (H) x 2160 (V)
Pixel Size 6.5um x 6.5um
Image Area
16.6mm (W) x 14.0mm (H)
Frame Rate (Global Shutter)
50fps
Dark Current @ 25C
<35 e-/s
Dynamic Range
83.5dB
Chroma
Mono or Color
Temperature -40°C to +55°C

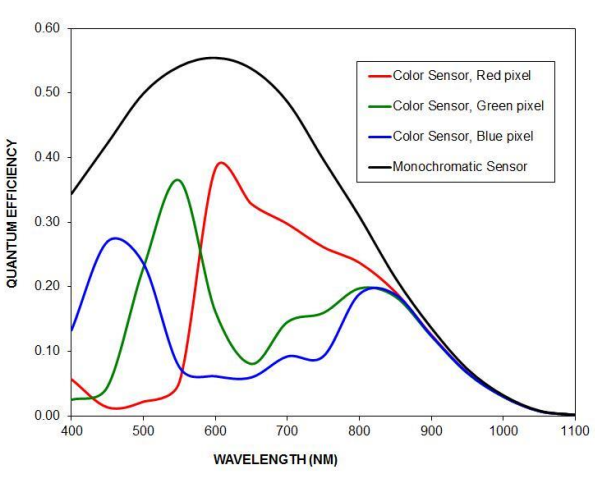

Quantum Efficiency





Related Products

Purchase

The following table lists configuration options for the CIS2521 Sensor Board. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.



 Title  Window Type
Chroma
Buy
CIS1910A Sensor Board Fixed Color Request Quote
CIS1910A Sensor Board Fixed Mono Request Quote
CIS1910A Sensor Board Temporary Color Request Quote
CIS1910A Sensor Board Temporary Mono Request Quote

Find your local sales contact.
