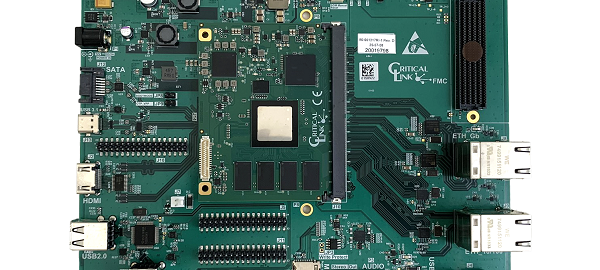

MitySOM-AM57(F) Development Kit

Overview

The MitySOM-AM57(F) Development Kit supports Critical Link’s Texas Instruments AM57xx and Xilinx Artix-7 based modules.

Each kit includes a compatible MitySOM-AM57(F) module (see Purchase Options below for compatible modules) and a base board that together feature an array of interfaces and expansion headers including FMC, USB 3.0, USB 2.0, Dual Gigabit Ethernet, Dual 10/100 Ethernet, HDMI, SATA, i2c, BT/WiFi, Audio In/Out, USB Debug UART, and Micro SD Card.

Development Kit Contents

Each MitySOM-AM57(F) Development Kit includes:

MitySOM-AM57(F) Base Board
MitySOM-AM57(F) Module (See “Purchase” below)
Micro USB Cable for Debug Console
Ethernet cable
Power Supply
USB Drive with Development VM and Documentation
Quick Start Guide

Documentation available through Critical Link:

Baseboard Schematics in PDF Format – See MitySOM-AM57(F) Texas Instruments AM57XX Wiki
Baseboard BOM – Contact Us
Baseboard Altium Designer Source Files – Contact Us

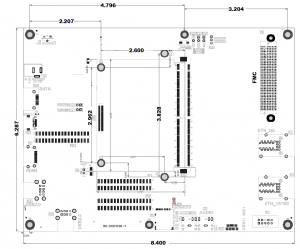

Block Diagram & Mechanical Detail

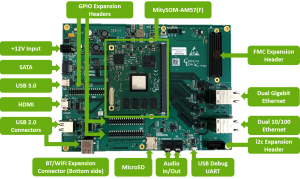

Click on the images below to view details for the MitySOM-AM57(F) Development Kit:

Dimensions	Length	Width
Inches	8.40	6.23
Millimeters	213.3	158.2

Documentation

Development Resources

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

Visit our MitySOM-AM57(F) Engineering Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
Visit our MitySOM-AM57(F) Forum to access:
- Software, Hardware, and FPGA forums
TI Sitara AM5728 Product Information
TI Sitara AM5748 Product Information
TI Sitara AM5749 Product Information
Xilinx Artix-7 Product Brief

Critical Link’s embedded design team also offers engineering services and other support options such as:

Schematic design review for customer designed carrier boards
Complete design review services
Software development services, including custom BSP development
Base board development services
Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Purchase Options

The following table lists the standard configurations for Critical Link’s MitySOM-AM57(F) Texas Instruments Sitara AM57xx-based development kit. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.

Dev Kit P/N	Module Included	Buy
80-001428	5728-PJ-4AA-RC (AM5728 + Artix 7 7A15T FPGA, 32MB NOR, 1GB DDR3 + 1GB DDR3, commercial temp)	Buy
80-001429	5748-PJ-4AA-RI (AM5748 + Artix 7 7A15T FPGA, 32MB NOR, 1GB DDR3 + 1GB DDR3, industrial temp)	Buy
80-001430	5749-PM-4AA-RI (AM5749 + Artix 7 7A50T FPGA, 32MB NOR, 1GB DDR3 + 1GB DDR3, industrial temp)	Buy
80-001527	5729-PX-4AA-RC (AM5729, 32MB NOR, 1GB DDR3 + 1GB DDR3, commercial temp)	Buy
80-001528	5749-PX-4AA-RC (AM5749, 32MB NOR, 1GB DDR3 + 1GB DDR3, commercial temp)	Buy
