MityCAM-B2521FEmbedded Vision System with CIS2521 5.5MP sCMOS image sensor

Contact Critical Link for product availability

Overview

The MityCAM-B2521F couples a 5.5MP high-performance, low-noise sCMOS imaging sensor from Fairchild Imaging (a division of BAE Systems) with the processing technology in Critical Link’s Altera Cyclone V SoC System on Module.





Applications

  • Machine Vision
  • Low-light Imaging
  • Embedded Instrumentation
  • Scientific Imaging
  • Surveillance Imaging
  • Unmanned & Autonomous Systems
  • Metrology Imaging

Documentation

Specifications

Sensor Specification

Sensor CIS-2521F
Type Front-illuminated
Active Pixels 2560 (H) x 2160 (V)
Pixel Size 6.5um x 6.5um
Image Area (W x H) 16.8mm x 14.2mm
Frame Rate
   Rolling Shutter
   Global Shutter

70fps*
35fps*
Dark Current e-/pixel/sec @ 20C
<35 e-
Peak Quantum Efficiency
>55%
Dynamic Range
>83.5dB
ADC – Dual 11-bit ADC
Yes

*Data rates up to 100/50fps (rolling/global shutter mode) are possible but not yet qualified.

System Noise

Noise (typ)
< 2 e¯

Data Acquisition Modes

Global Shutter
For longer exposures or synchronizing with an external shutter
Rolling Shutter
For normal high-speed operation

On-board Processor (MitySOM-5CSX)

CPU Engine
Altera Cyclone SoC – Dual core ARM Cortex-A9 and FPGA
Full Featured SDK
Supports rapid application development

Mount

  • Full cameras feature a standard C or F mount lens, while the board set version allows quick and easy custom integration into your product. Please contact Critical Link for more information.

Environment

Temperature
0°C to +50°C
Humidity
<80% non-condensing

Electrical

Voltage
12 VDC

Quantum Efficiency

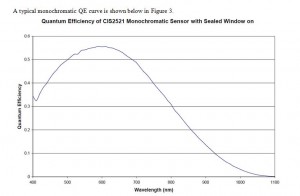

MityCAM-B2521F-Spectral-Response













Block Diagram

MityCAM-B2521FTS_block-diagram







Interfaces



Mechanical

Dimensions (with Compact Enclosure)
76.2mm x 86.56mm x 72.28mm  (3.0″ x 3.41″ x 2.85″)
Weight (with Compact Enclosure)
524g (18.5oz)

Software

MityCAM image acquisition can be done through either a CameraLink panel application or with MityViewer, Critical Link’s software solution for optimal throughput and complete functionality.

We recommend visiting the MityCAM wiki page on our engineering support site and registering for an account in advance of receiving your MityCAM. Once your registration is confirmed, you can download the latest version of our MityViewer software from the wiki page, which will be required to start capturing images.

Related Products

Purchase

The following table lists off-the-shelf configuration options for the MityCAM-B2521F cameras. For shipping status, availability, and lead time of these or other configurations, please contact Critical Link.

 Model Number
Sensor
Package
Sensor
Window
Chroma
High Speed
Interface
Body
Buy
B2521FTS-CM-C-S Scientific Sealed Mono Dual Camera Link Camera Buy
B2521FTT-CM-C-S Scientific Temporary Mono Dual Camera Link Camera Buy



Accessory Kit

The table outlines an accessory kit for the MityCAM-B2521F. This kit is required when evaluating the sensor or doing development, and is compatible with the camera body models listed above. It is not required for cameras that are being integrated into a working design.

Part Number Kit Contents
80-000783
Nikon AF NIKKOR 50mm f/1.8d Lens
Lens Mount Adapter
Tripod
I/O Cable
USB Cable
Power Supply
Ethernet Cable



Find your local sales contact.
