Overview
The MitySOM-C10G series of highly configurable, small form-factor System-on-Modules features an Altera Cyclone 10 GX field programmable gate array (FPGA) and include on-board power supplies, NOR FLASH and DDR3L memory subsystems. Using a NIOS II Softcore processor, the MitySOM-C10G provides a complete and flexible CPU infrastructure for a low cost integrated embedded system.
The MitySOM-C10G has been designed to support several upgrade options. These include various FPGA densities, speed grades, and operating temperature specifications (including commercial and industrial temperature ranges).
Applications
- Embedded Co-Processor
- Test and Measurement
- Embedded Instrumentation
- Industrial Automation and Control
- Industrial Instrumentation
- System IO expansion
- Embedded Imaging
Specifications
Cyclone 10 GX FPGA – F780 Package
- Up To 220K Logic Elements (LE)
- Up to 192 DSP Logic Blocks
- Up to 300Mhz Fabric Clock
- Up To 11.7Mb Embedded Memory
- Up To 4 fractional synthesis PLLs
- Up To 6 IO PLLs
Memory
- Up To 1GB DDR3L at 7.45 GB/sec
- Up To 32MB QPSI NOR FLASH
4 Banks of FPGA IO
- 192 Direct Connect FPGA IO pins
- 70 true LVDS pairs
- 8 LVCMOS, LVDS, SSTL-18, and 1.8V HSTL IO standards supported.
- 8 Clock Input Pins
Up to 12 Transceiver Pairs
- Speeds up to 12.5 Gbps
- PCIe Gen2 x4 hard IP block
- 4 Clock Inputs
Integrated Power Management
- Single +5V Input for on-board needs
- Bank IO Voltage Configured for 1.8V
- Bank IO Reference Voltage at 0.9V
Additional Details
- JTAG Interface Available on Edge Connector
- 2 channels of ADC input
- On-Board 100 MHz clock
- Configuration Status and General-Purpose Tri-Color LEDs

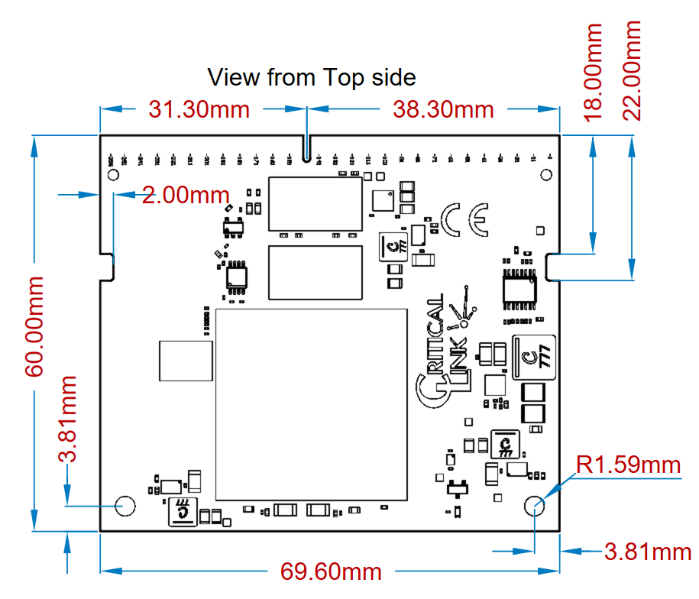

Mechanical
- 260-Pin Card Edge Connector

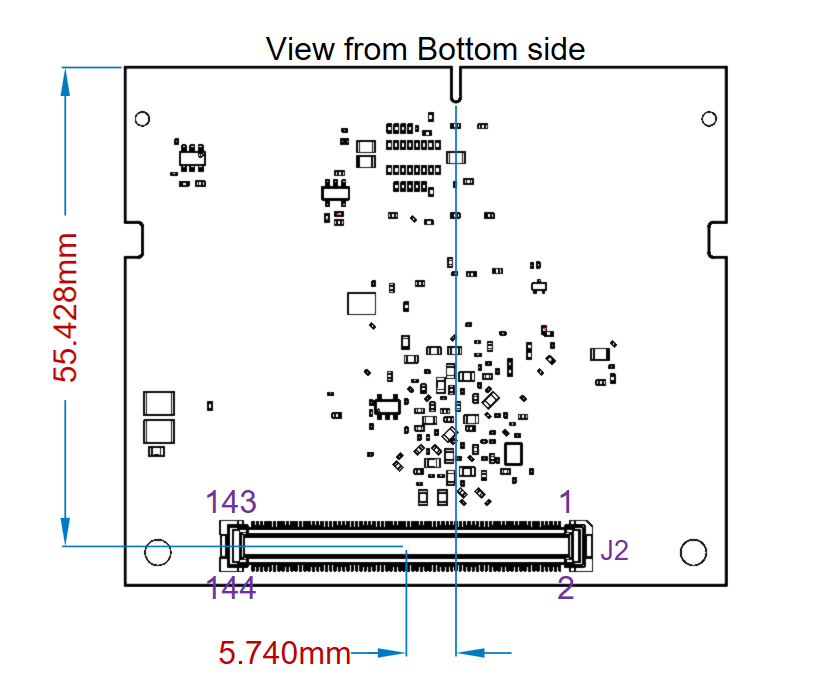

- 144-Pin Board to Board Connector (bottom side, not shown in figure)
| Dimensions | Length | Width |
| Inches | 2.75 | 2.4 |
| Millimeters | 70 | 60 |
Block Diagram
Development Resources
Development Tools
- Quartus Prime Standard
- GNU Toolchain
- Terasic USB Blaster

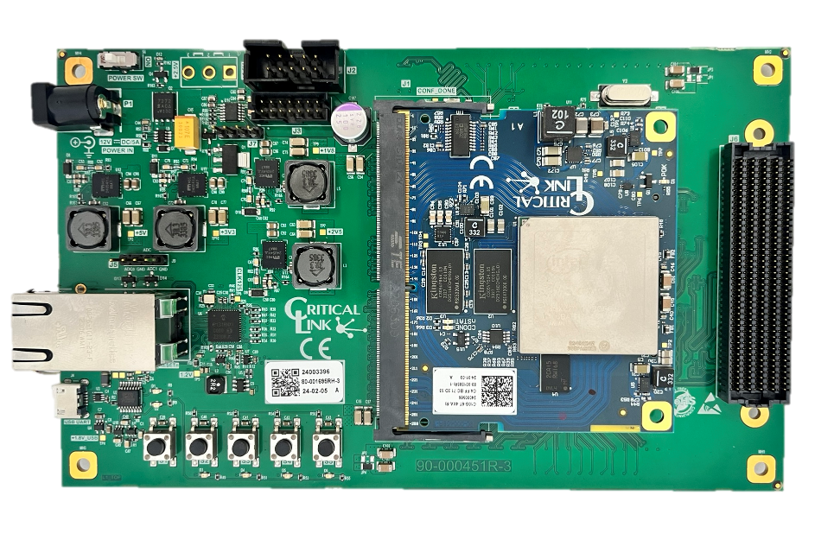

Development Kit
The MitySOM-C10L/G Development Kit supports Critical Link’s Cyclone 10 FPGA-based modules.
Each kit includes a compatible MitySOM-C10L or MitySOM-C10G module and a base board that features on-board Debug UART to USB converter and 10/100/1000 Gb Ethernet communication interfaces, FMC HPC connector that is compatible with a wide range of existing add-on cards, and two 60-pin dual row connectors that provide additional IO expansion options. All powered from a single 12VDC input (adapter included) with onboard +3.3V/+5V/2.5V/1.8V power supplies.
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MitySOM-C10G Altera Cyclone 10 Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MitySOM-C10G Altera Cyclone 10 GX Forum to access:
- Software, Hardware, and FPGA forums
- Altera Cyclone 10 GX Documentation
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The following table lists the standard configurations for Critical Link’s Cyclone 10 GX modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Module P/N | Speed Grade |
DDR3L | FPGA KLE |
NOR | Temp | Buy |
| C10G-6R-4XA-RI | 6 | 1 GB | 105 | 32MB | -40C to 85C | Buy |
| C10G-6T-4XA-RI | 6 | 1 GB | 220 | 32MB | -40C to 85C | Buy |
