Overview

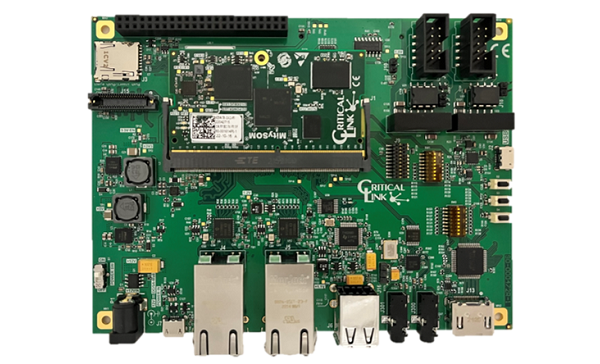

The MitySOM-AM62/AM62A/AM62P Development Kit supports Critical Link’s MitySOM-AM62, MitySOM-AM62A, and MitySOM-AM62P families of modules based on Texas Instruments Sitara AM62xx family of processors.

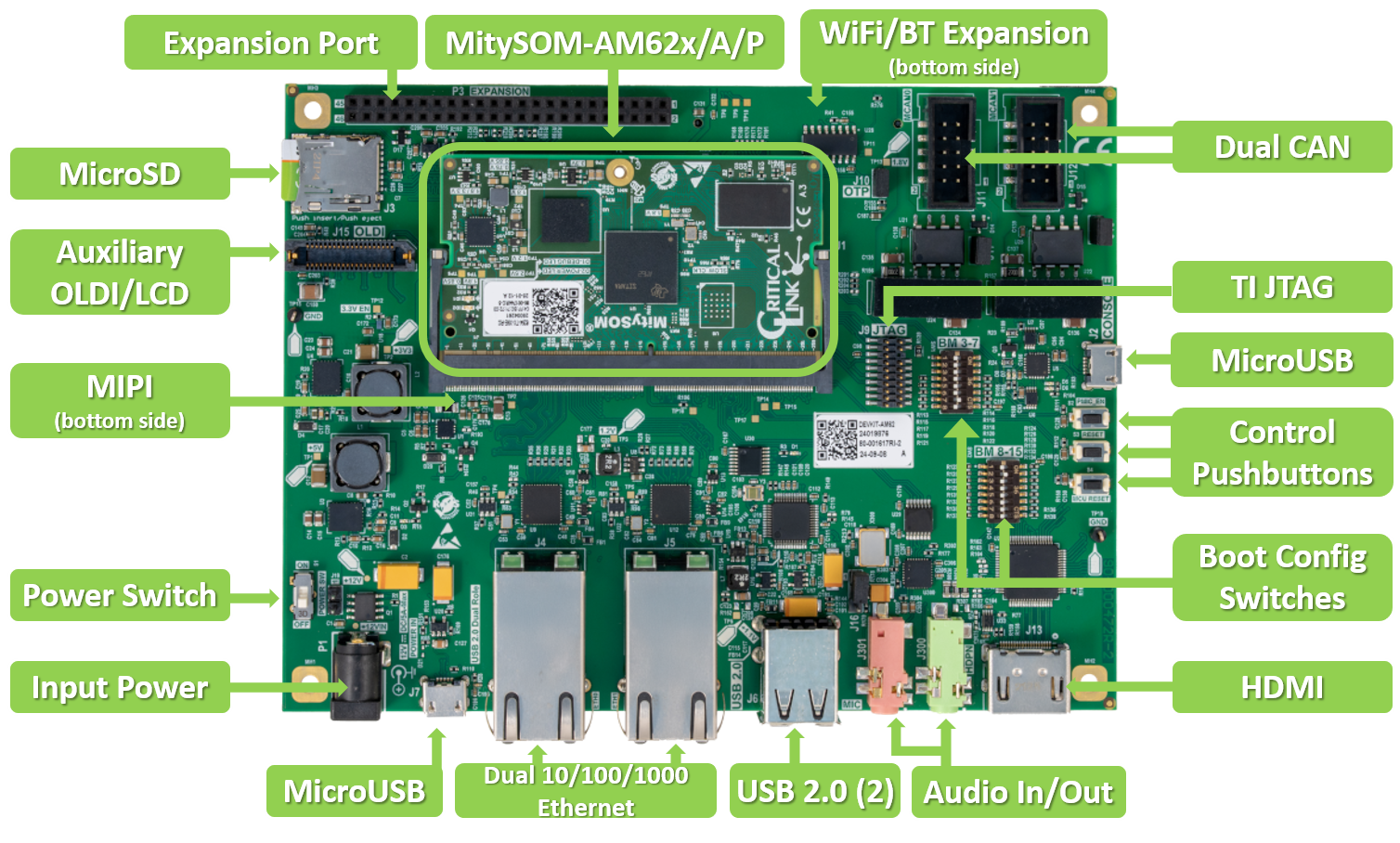

Each kit includes a compatible MitySOM-AM62/A/P module (see Purchase Options below for compatible modules) and a base board that together feature an array of interfaces and expansion headers including MIPI, Dual USB 2.0, Micro USB 2.0, Dual Gigabit Ethernet, Dual 10/100 Ethernet, HDMI, Dual CAN Bus, Audio In/Out, Dual OLDI/LCD Output Adapter, USB Debug UART, Micro SD Card, and WiFi/Bluetooth Module Adapter.
Development Kit Contents
Each MitySOM-AM62/AM62A/AM62P Development Kit includes:
- MitySOM-AM62 Base Board
- MitySOM-AM62/A/P Module (See “Purchase” below)
- Micro USB Cable for Debug Console
- Ethernet cable
- Power Supply
- USB Drive with Development VM and Documentation
- Quick Start Guide
Documentation available through Critical Link:
- Baseboard Schematics in PDF Format – Contact Us
- Baseboard BOM – Contact Us
- Baseboard Altium Designer Source Files – Contact Us

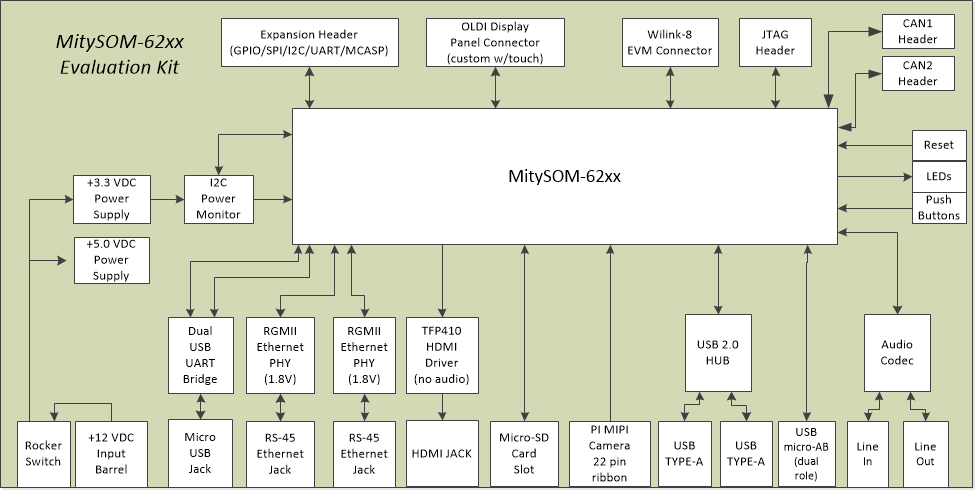

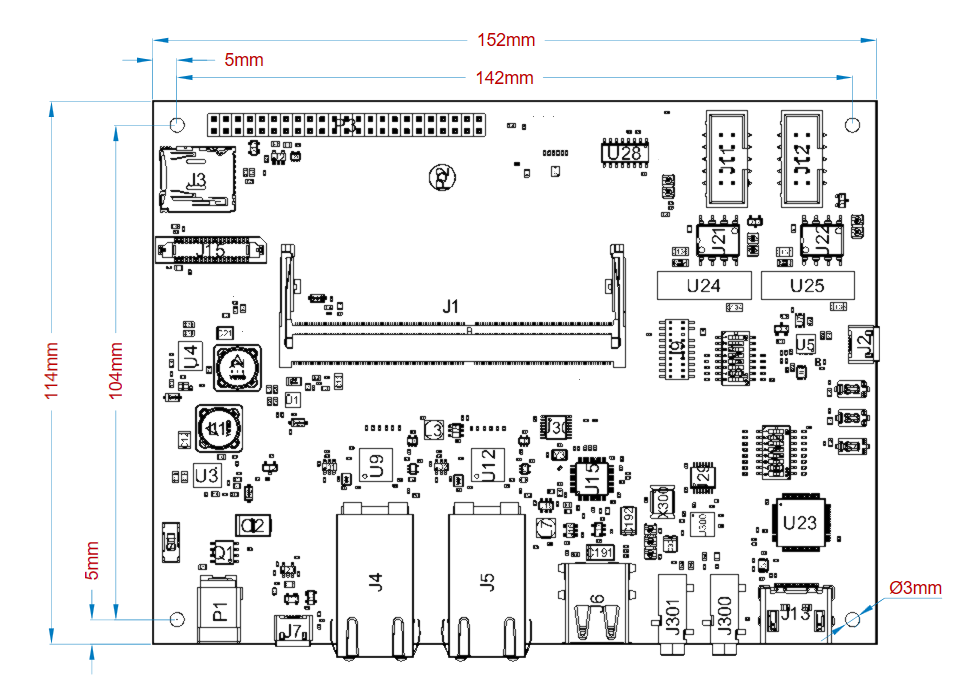

Block Diagram & Mechanical Detail
Click on the images below to view details for the MitySOM-AM62/AM62A/AM62P Development Kit:
Dimensions | Length | Width |
Inches | 5.98 | 4.49 |
Millimeters | 152.0 | 114.0 |
Documentation
- MitySOM-AM62 / AM62A / AM62P Development Kit Datasheet
- MitySOM-AM62x/A/P Family Overview
- MitySOM-AM62 SOM Overview
- MitySOM-AM62A SOM Overview
- MitySOM-AM62 Datasheet
- MitySOM-AM62A Datasheet
- MitySOM-AM62P Datasheet
- Carrier Board Design Guide – MitySOM-AM62 modules
- Carrier Board Design Guide – MitySOM-AM62A & AM62P modules
- TI Sitara AM62x Data Sheet
- TI Sitara AM623 Product Page
- TI Sitara AM625 Product Page
- TI Sitara AM62Ax Data Sheet
- TI Sitara AM62A3 Product Page
- TI Sitara AM62A7 Product Page
- TI Sitara AM62Px Data Sheet
- TI Sitara AM62P Product Page
- MitySOM-AM62/A/P Product Change Notifications (PCN)
- MitySOM-AM62/A/P Engineering Support Site Wiki

Development Resources
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MitySOM-AM62/A/P Engineering Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MitySOM-AM62/A/P Forum to access:
- Software, Hardware, and FPGA forums
- TI Sitara AM62x Data Sheet
- TI Sitara AM623 Product Page
- TI Sitara AM625 Product Page
- TI Sitara AM62Ax Data Sheet
- TI Sitara AM62A3 Product Page
- TI Sitara AM62A7 Product Page
- TI Sitara AM62Px Data Sheet
- TI Sitara AM62P Product Page
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The following table lists the standard configurations for Critical Link’s TI Sitara AM62xx / AM62Ax / AM62Px-based development kit. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
Dev Kit P/N |
Module Included | Buy |
80-001823 | 62P54-TX-XAE-RI-X | Buy |
80-001729 | 62A74-TX-XAE-RI | Buy |
80-001727 | 62A74-TX-XXD-RI | Buy |
80-001694 | 6254-TX-XXD-RI | Buy |
80-001642 | 6252-TX-XXD-RI | Buy |
80-001641 | 6231-IX-XXA-RI | Buy |
80-001643 | 6254-TX-XXD-RI-GP | Buy |
