Note that online purchase is limited to US customers only.
Price range: $399.00 through $499.00
Texas Instruments Sitara AM62x, AM62A, and AM62P Development Kit from Critical Link
Description
In stock. Typically ships within 3 business days.

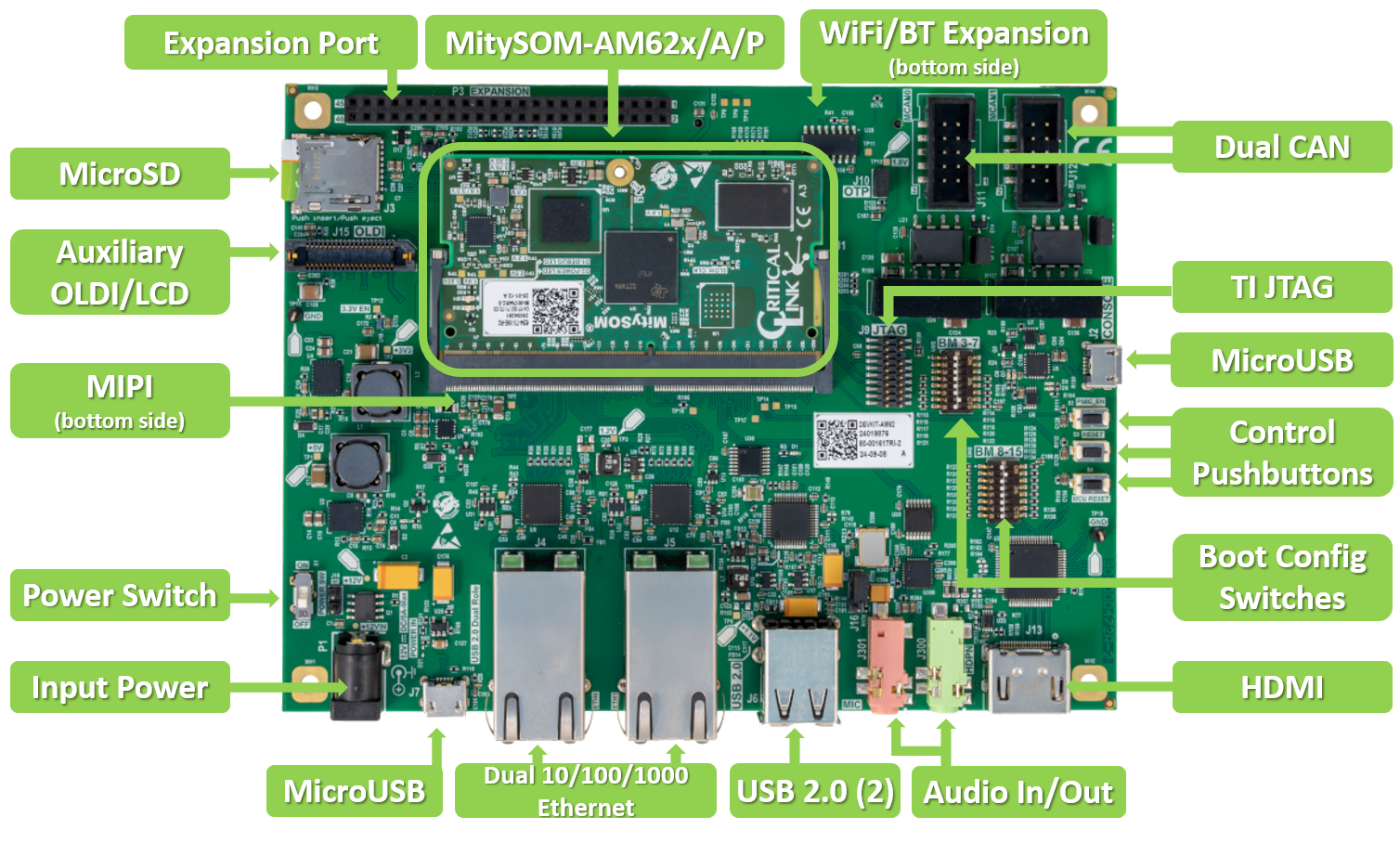

The MitySOM-AM62x/A/P Development Kit supports Critical Link’s Texas Instruments Sitara AM62x, AM62A, and AM62P system on modules. The following table lists the currently available configurations. Contact Critical Link at info@criticallink.com with any questions or to inquire about a different option.
| Dev Kit P/N |
Module Included |
| 80-001823
*Available to ship February 2026 |
62P54-TX-XAE-RI-X
(AM62P, Quad Core A53, 1.4GHz, 64G eMMC, 4GB DDR4, Industrial Temp) |
| 80-001729 | 62A74-TX-XAE-RI
(AM62A, Quad Core A53, 1.4GHz, 2 TOPS, 64G eMMC, 4GB DDR4, Industrial Temp) |
| 80-001727 | 62A74-TX-XXD-RI
(AM62A, Quad Core A53, 1.4GHz, 2 TOPS, no eMMC, 2GB DDR4, Industrial Temp) |
| 80-001694 | 6254-TX-XXD-RI
(AM62x, Quad Core A53, 1.4GHz, no eMMC, 2GB DDR4, Industrial Temp) |
| 80-001642 | 6252-TX-XXD-RI
(AM62x, Dual Core A53, 1.4GHz, no eMMC, 2GB DDR4, Industrial Temp) |
| 80-001641 | 6231-IX-XXA-RI
(AM62x, Single Core A53, 1GHz, no eMMC, 1GB DDR4, Industrial Temp) |
| 80-001643 | 6254-TX-XXD-RI-GP
(AM62x, Quad Core A53, 1.4GHz, no eMMC, 2GB DDR4, Industrial Temp, pre-production part) |
Each Development Kit includes:
- MitySOM-AM62/A/P Base Board
- MitySOM-AM62/A/P Module
- Micro USB Cable for Debug Console
- Ethernet cable
- Power Supply
- USB Drive with Development VM and Documentation
- Quick Start Guide
Product Family Details Pages
Additional information
| P/N | 80-001823, 80-001729, 80-001727, 80-001694, 80-001642, 80-001641, 80-001643 |
|---|
Related products
-

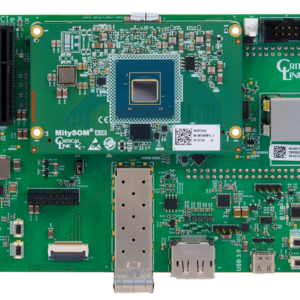

MitySOM-A5E Mini Development Kit
