Overview

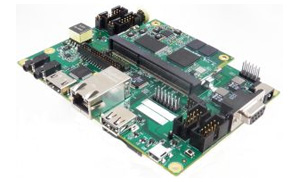

The MitySOM-335x Development Kit supports the AM335x based modules from Critical Link.
Each kit includes a compatible MitySOM-335x module (see Purchase Options below for compatible modules) and a base board that features a strong array of interfaces such as USB, Debug RS232, Dual UART Expansion ports, Video Output, Audio Input/Output, MMC/SD, 8-Channel ADC and Dual CAN Bus interfaces. The MitySOM-335x Development Kit includes both RS232 and RS485/422 expansion modules to use with the Dual UART Expansion ports. In addition, multiple LCD with touch screen kits are also available and compatible with this kit.
Development Kit Contents
Each MitySOM-335x Development Kit includes:
- MitySOM-335x Baseboard
- Compatible MitySOM-335x Module (See “Purchase” below)
- RS232 Expansion
- RS485 Expansion
- Video output cable
- DB9 Serial Port cable
- Ethernet cable
- AC/DC 12V Power Supply
- Bootable SD Card with pre-loaded Linux OS
- USB Drive with Development VM and Documentation
- Quick Start Guide
Documentation available through Critical Link:
- Baseboard Schematics in PDF Format – See MitySOM Cortex-A8 Wiki
- Baseboard BOM – Contact Us
- Baseboard Altium Designer Source Files – Contact Us

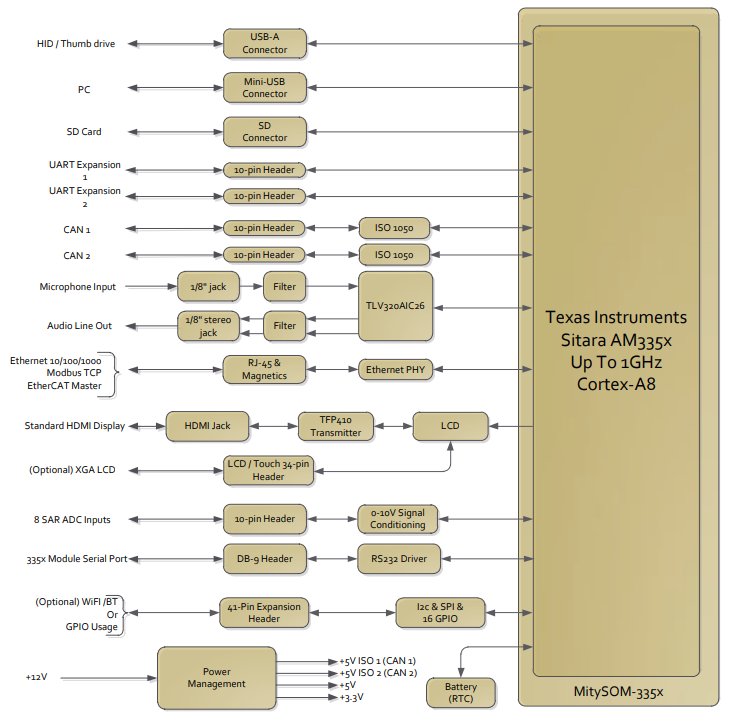

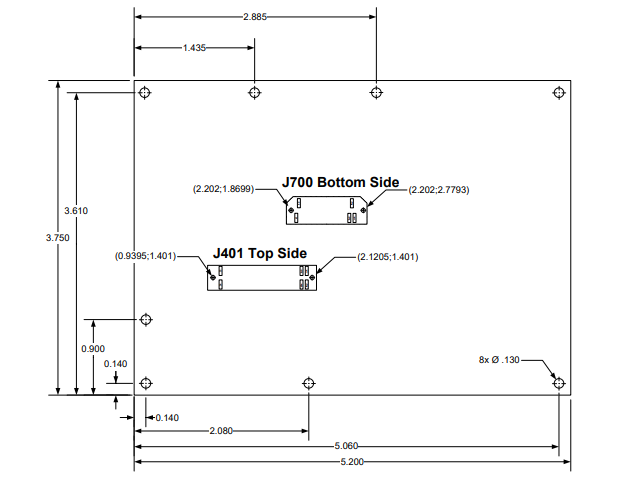

Block Diagram & Mechanical Detail

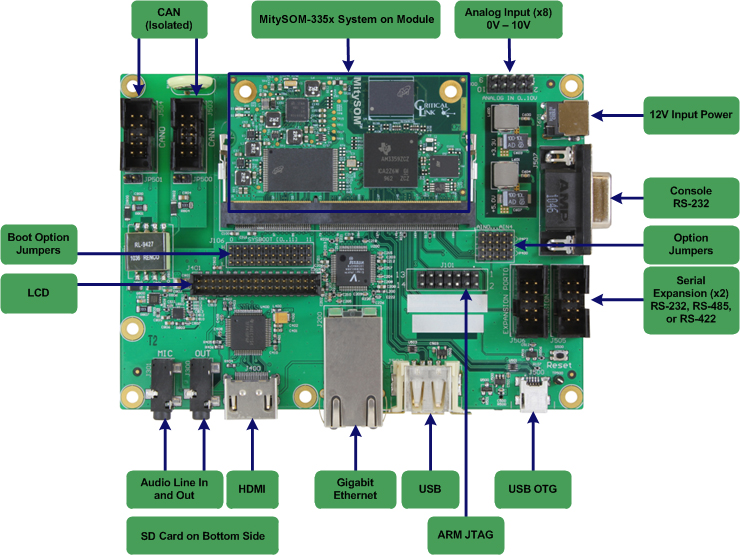

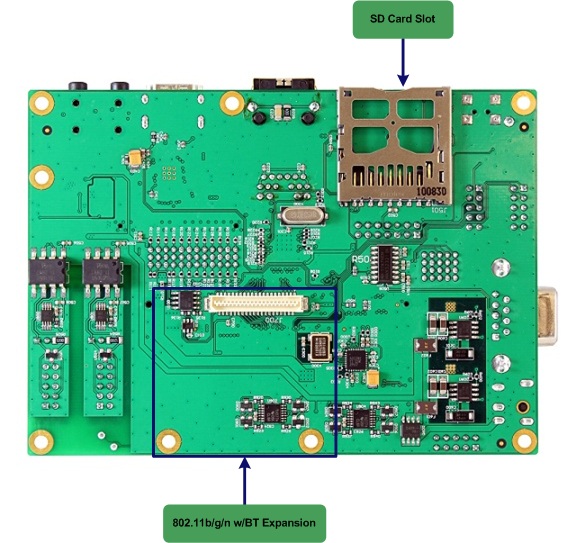

Click on the images below to view details for the MitySOM-335x Development Kit:
| Dimensions | Length | Width |
| Inches | 5.20 | 3.75 |
| Millimeters | 132.08 | 95.25 |
Development Resources
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MitySOM Cortex-A8 Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MitySOM Cortex-A8 Forum to access:
- Software, Hardware, and FPGA forums
- TI Cortex-A8 Wiki
- TI E2E Forums
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Compatible Expansions
Videos
Purchase Options
The following table lists the standard configurations for Critical Link’s Texas Instruments Sitara AM335x-based development kit. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Dev Kit | Module P/N (Included) | Buy |
|
80-000634
|
3354-HX-X38-RC | Buy |
|
80-000511
|
3359-GX-226-RL | Buy |
|
80-000512
|
3359-GX-226-RC | Buy |
