Overview

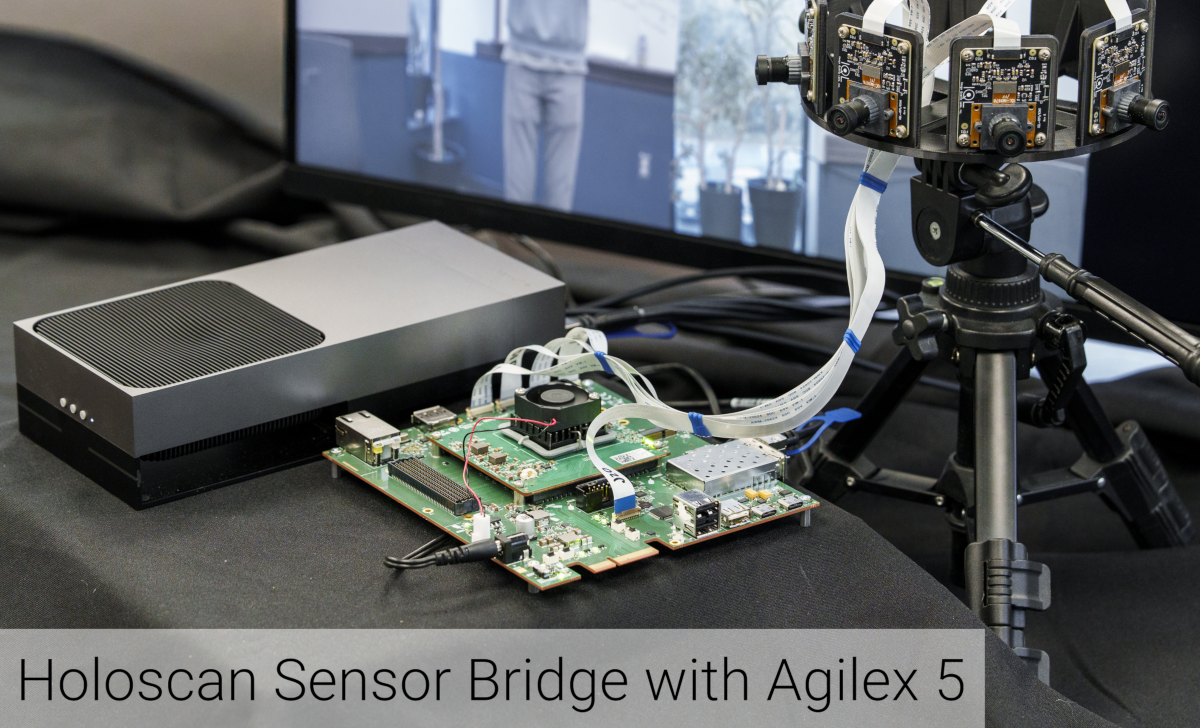

Critical Link’s MitySOM-A5E system on module serves as the processing engine in this Holoscan Sensor Bridge (HSB) platform. HSB is a low-latency, FPGA-based interface that integrates heterogeneous sensor data for real time GPU based AI inferencing. It simplifies sensor fusion and Edge AI application development.
Key Features of Critical Link’s HSB Solution:
- Agilex® 5 FPGA aggregates sensor inputs
- 8 MIPI 4-Lane CSI-2 camera interfaces
- Dual 10Gb or 25Gb Ethernet transport
- FMC connector for additional sensor inputs
- Direct transfer to any NVIDIA GPU
- Precision timing for HW-based multi-sensor synchronization
- Utilizes production ready, long-lifespan SOMs
Demo units are currently available for this platform. To arrange a demo, contact Critical Link at info@criticallink.com, or contact your local Altera sales person.
Applications
- Robotics / Humanoids
- Multi-camera AGVs
- Robotic Surgery Equipment
- Diagnostic Imaging
- Industrial Automation
- Visual Inspection
- Critical Safety Analysis
- Biometrics
- Pattern Analysis
- Scientific Instrumentation
Specifications
The HSB platform utilizes the MitySOM-A5E Standard Development Kit, which features:
MitySOM-A5E System on Module:
- Agilex 5 SoC FPGA E-Series from Altera: 32mm x 32mm package, with up to 24 transceiver pairs
- FPGA fabric up to 656 KLE
- Dual-core Cortex-A55 + Dual-core Cortex-A76
- Up to 8GB HPS FPGA shared LPDDR4 + Up to 8GB FPGA LPDDR4
- A host of FPGA & HPS IO – review the MitySOM-A5E datasheet for full details

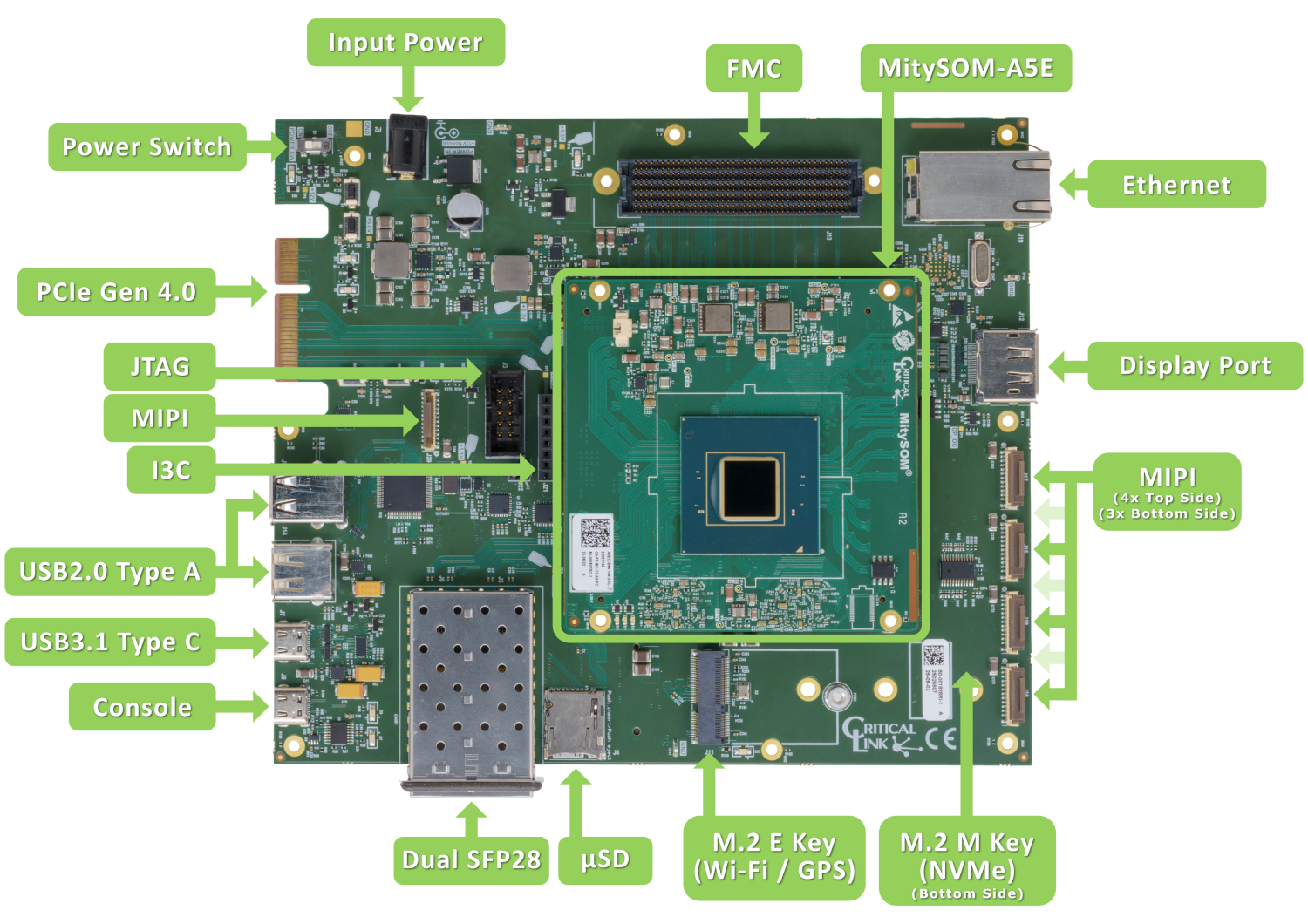

Development Board Interfaces:
- 8 22-pin 4-lane MIPI camera interface
- 2x SFP28 supporting up to 28Gb/s
- DisplayPort supporting 8K video at 60Hz
- FMC port with LPC + 8 Transceivers
- PCIe Gen 4.0 x4 edge connector
- USB-C port supporting USB 3.1 Gen 1
- 10/100/1000 Mb Ethernet Interface
- USB-C 2.0 Port Console Interface
- 3x USB Type A connectors (USB 2.0)
- Micro-SD Card Socket
- M.2 E key WIFI interface port
- M.2 M key NVME interface port
- I3C Expansion Header

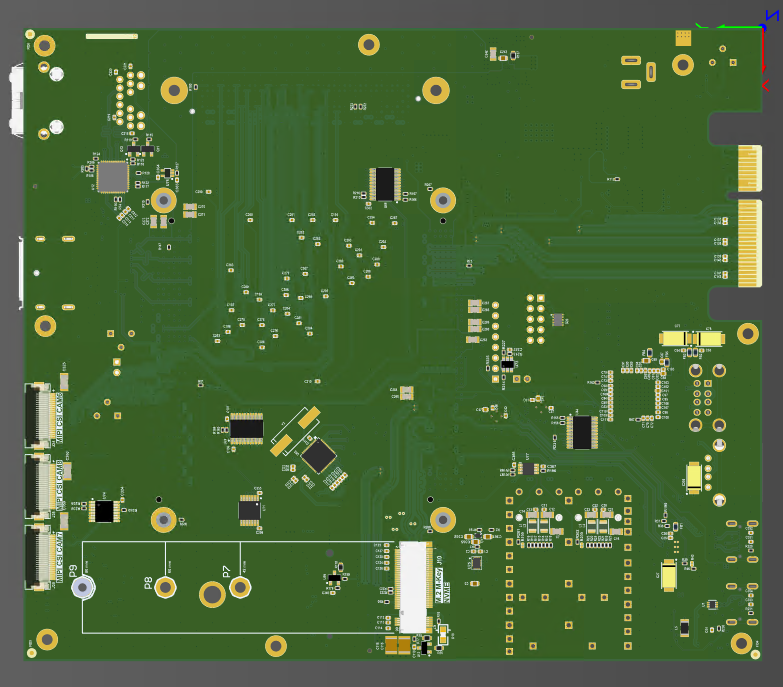

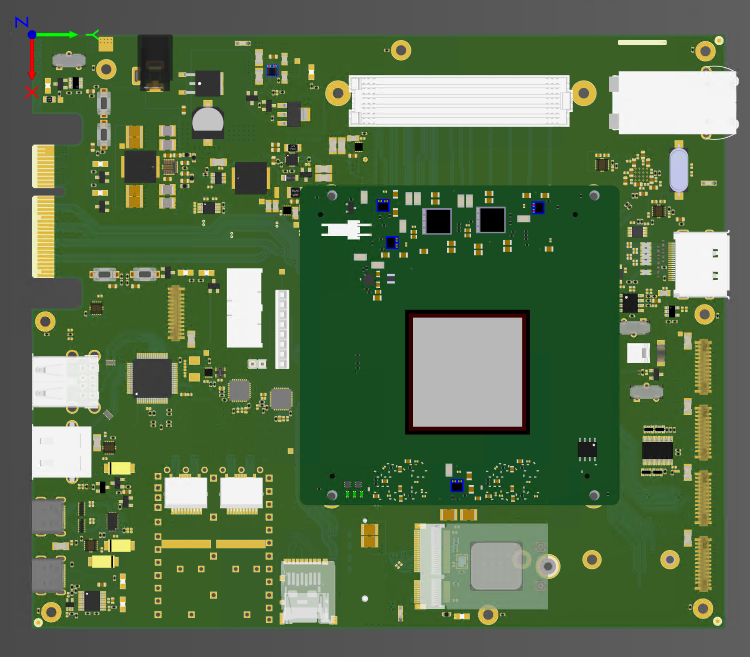

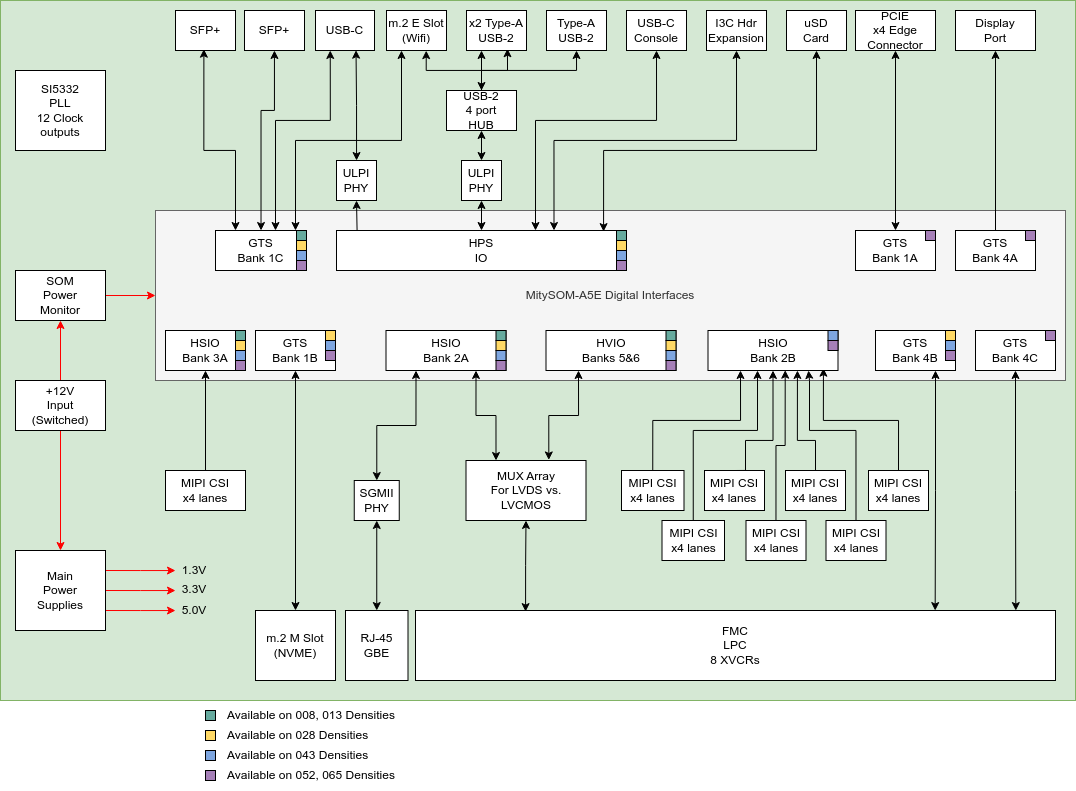

Click on the images to view the block diagram and layout of the HSB platform:
