MitySOM-335x
Production-ready TI Sitara AM335x-based System on Module

Overview

Check out the new Sitara AM62x, AM62A, & AM62P-based SOMs

The MitySOM-335x family of system-on-modules feature a Texas Instruments Sitara AM335x Processor. The modules include NAND FLASH and DDR2 or DDR3 RAM memory subsystems, providing a complete and flexible CPU infrastructure for highly integrated embedded systems.

The onboard AM335x processor provides Cortex-A8 32-bit RISC processor with a NEON SIMD coprocessor and optional 3D graphics accelerator. This MPU is capable of running a rich set of real-time operating systems containing software applications programming interfaces (APIs) expected by modern system designers. The ARM architecture supports several operating systems, including Linux, QNX, and Windows Embedded Compact.

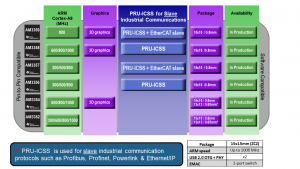

Critical Link’s MitySOM-335x family of modules uses Texas Instruments AM3352, AM3354, AM3358, and AM3359 processors.  Click the diagram below to view the differences between these processors.

Specifications

CPU

Memory

Interfaces

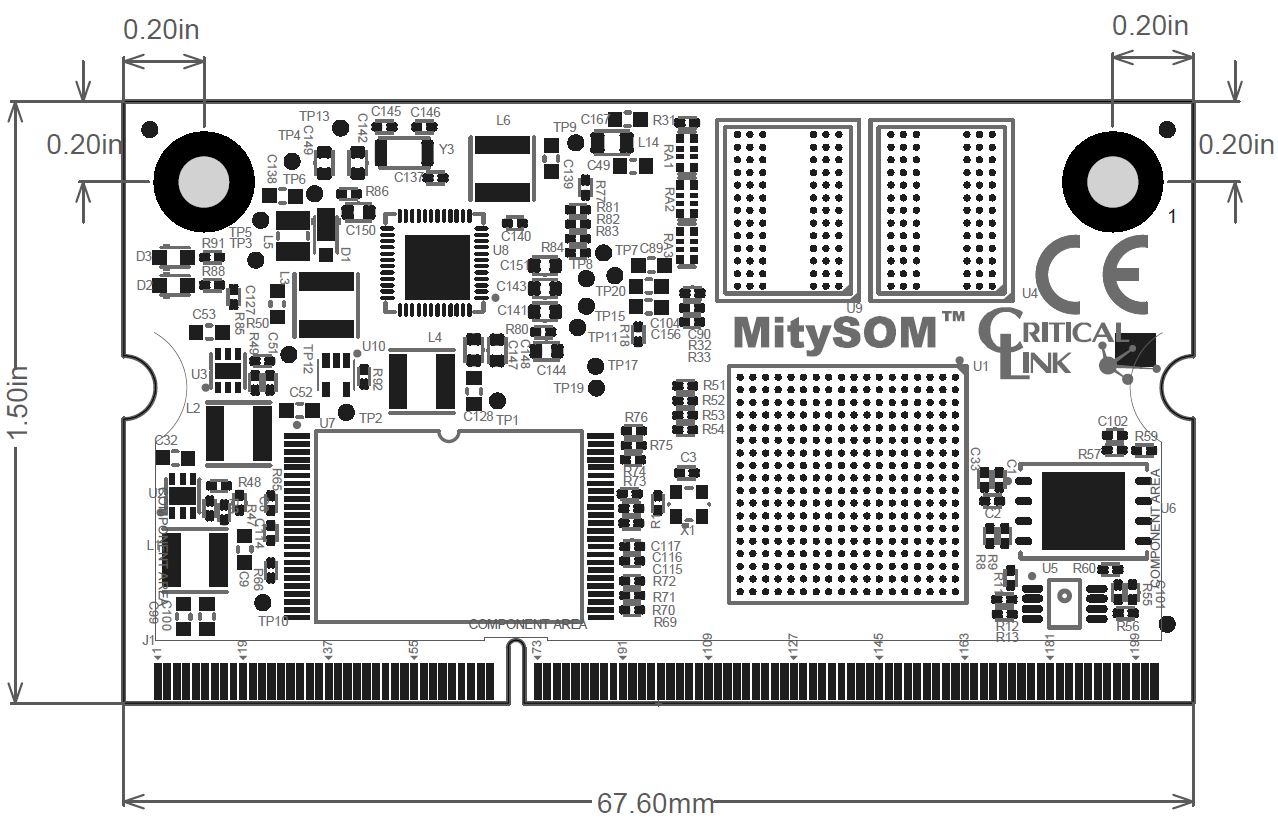

Mechanical

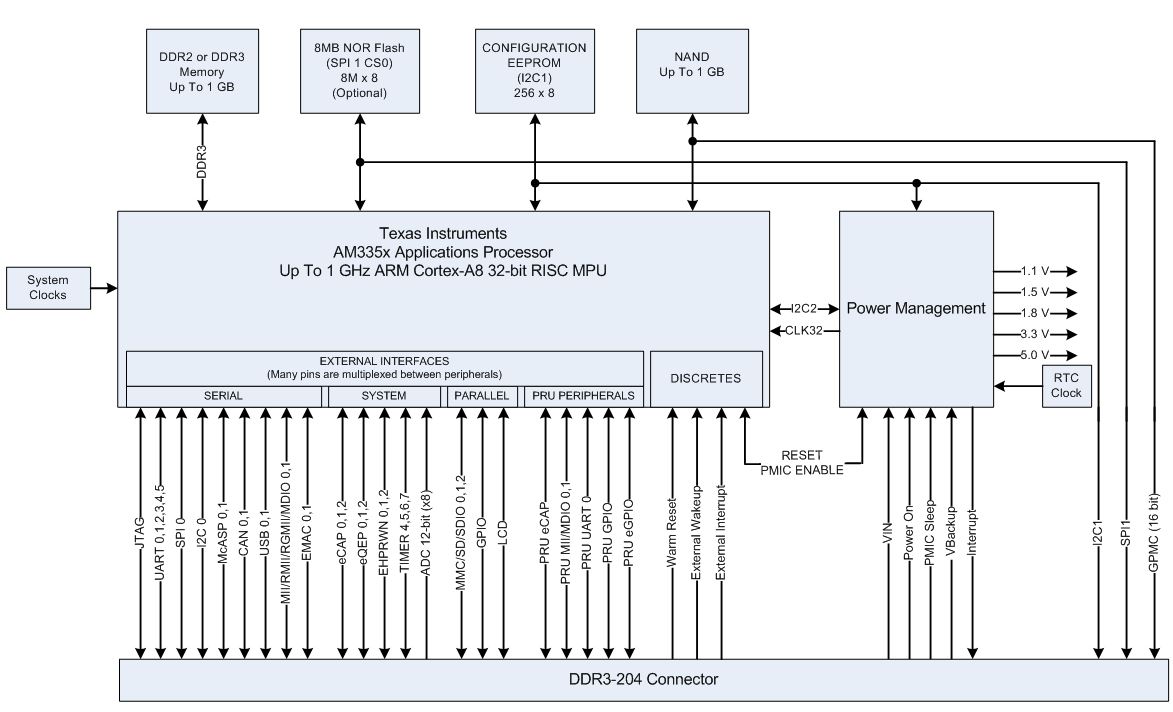

Block Diagram

Video

Development Resources

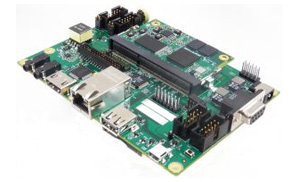

Development Kit

The MitySOM-335x Development Kit supports the AM335x based modules from Critical Link.

Each kit includes a compatible MitySOM-335x module (see Purchase Options below for compatible modules) and a base board that features a strong array of interfaces such as USB, Debug RS232, Dual UART Expansion ports, Video Output, Audio Input/Output, MMC/SD, 8-Channel ADC and Dual CAN Bus interfaces. The MitySOM-335x Development Kit includes both RS232 and RS485/422 expansion modules to use with the Dual UART Expansion ports. In addition, multiple LCD with touch screen kits are also available and compatible with this kit.

Software Support

• Real-time Linux Operating System
• uBoot
• ThreadX RTOS from ExpressLogic
• TimeSys LinuxLink
• QNX Real-time Operating System Capable
• Windows Embedded Capable
• Qt Embedded Graphics

Development Tools

• Texas Instruments Code Composer Studio
• GNU Toolchain

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

• Visit our MitySOM Cortex-A8 Wiki to access:
  • Linux OS and board support package details, including source code
  • Product change notices
  • Base board design guide
  • Development kit base board design files
  • Software guide to getting started, tool chain, tips and how-to’s
  • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
  • Frequently asked questions
• Visit our MitySOM Cortex-A8 Forum to access:
  • Software, Hardware, and FPGA forums
• TI Cortex-A8  Wiki
• TI E2E Forums

Critical Link’s embedded design team also offers engineering services and other support options such as:

• Schematic design review for customer designed carrier boards
• Complete design review services
• Software development services, including custom BSP development
• Base board development services
• Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.

Purchase Options

The following table lists the standard configurations for Critical Link’s MitySOM-335x Sitara AM335x-based modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.

Find your local sales contact.

*Note: The selected distributor does not yet carry this model.  You may contact them for ordering information, or submit a request directly to Critical Link.
