Overview
Product status: End of Life – Contact info@criticallink.com for information
The MityDSP-6711F is a highly configurable, small form-factor System on Module (SoM) that features a Texas Instruments TMS320C6711 200 MHz DSP tightly integrated with a Xilinx XC3S400 or XC3S1000 Spartan 3 FPGA, FLASH and DDR SDRAM memory subsystems. Both the DSP and the FGPA are capable of loading/executing programs and logic images developed by end users.
The MityDSP-6711F provides a complete digital processing infrastructure necessary for embedded applications development.
Need to work with a complete off the shelf solution? The MityDSP-6711F Development Kit is compatible with any of the MityDSP-6711F models.
Applications
- Embedded Instrumentation
- Rapid Development / Deployment
- Embedded Digital Signal Processing
- Industrial Instrumentation
- Medical Instrumentation
- Embedded Control Processing
Specifications
CPU
| TI DSP Processor | C6711 Floating Point DSP |
| Max CPU Speed | 200MHz |
| Performance | 600MFLOPS |
| L1 Program Cache | 4KB |
| L1 Data Cache | 4KB |
| L2 Cache / Internal RAM | 64KB |
Memory
| System Memory | |
| NOR Flash | up to 16MB |
| SDRAM | up to 32MB |
| FGPA Options | Xilinx Spartan-3 XC3S400 |
Xilinx Spartan-3 XC3S1000 |
| Slices | 3,584 | 7,680 |
| Logic Cells | 8,064 | 17,280 |
| Block RAM | 288Kb | 432Kb |
Physical Interface
| Connector Pins | 144 |
| Connector Type | SO DIMM |
| Mating Connector | 5-4189-1440 |
| 390110-1 (AMP) |
Standard Interfaces
| 98 FPGA User I/O Pins | 2 McBSP Interface |
| DSP Emulator Interface | FPGA JTAG Interface |
Interfaces Available with SDK
| 10/100 EMAC | LwlP TCP/IP Stack |
| UART | ADC |
| USB | LCD Interfaces |
| DAC | Digital I/O |
| Temperature Sensor | RTC |
| Stepper Motor Control |

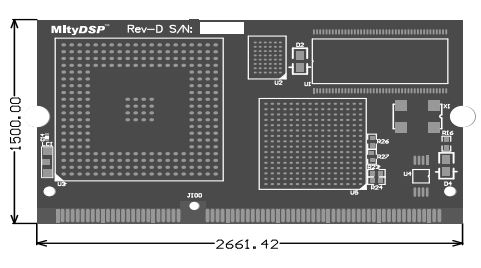

Mechanical
| Dimensions | Length | Width |
| Inches | 2.66 | 1.5 |
| Millimeters | 67.60 | 38.10 |

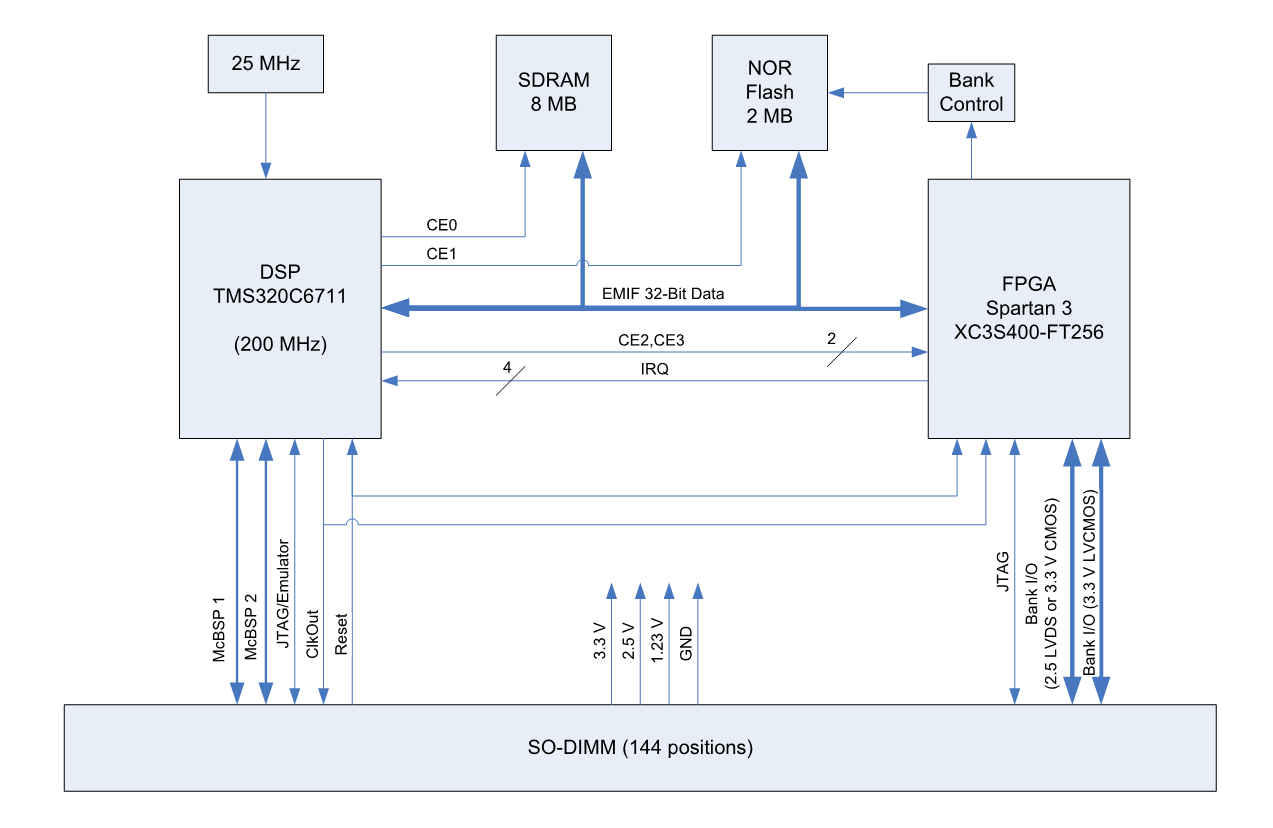

Block Diagram
Video
Development Resources
Development Kit
The MityDSP-6711F Development Kit provides a 5″x7″ mother card that includes a MityDSP interface socket, a 10/100 Ethernet PHY, 6 Mbit USB PHY, and RS-232 drivers for communications, an LVDS LCD interface connector, an 8 channel analog to digital converter and an 8 channel digital to analog converter to get you started.
The mother card also provides additional Hirose connectors for add on modules as necessary for specific application needs. The Hirose connectors provide direct FPGA interface to the MityDSP, allowing customization of the motherboard configuration. Critical Link provides several modules and cores that integrate directly with the available MityDSP Core FPGA and DSP libraries. In addition, custom modules may be developed (by Critical Link, or a third party) to suit a particular need. This technique greatly reduces the scope of non-recurring engineering, as less focus is place on common infrastructure and more on your particular application needs.
Software Support
Development Tools
| Development Tool | Subsystem |
| Texas Instruments Code Composer Studio | C6xxx DSP |
| Xilinx ISE | Spartan-3 FPGA |
| Spectrum Digital XDS510 USB JTAG Emulator |
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MityDSP C6xxx Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MityDSP C6xxx Forum to access:
- Software, Hardware, and FPGA forums
- TI E2E Forums
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The following table lists the standard configurations for Critical Link’s MityDSP-6711F modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Module P/N | CPU | FPGA | SDRAM | NOR | Temp | Buy |
| 6711-AA-1X1-RC | 200MHz | XC3S400 | 8MB | 2MB | 0C to +70C | Buy |
| 6711-KA-1X1-RI | 167MHz | XC3S400 | 8MB | 2MB | -40C to +85C | Buy |
| 6711-AB-3X3-RC | 200MHz | XC3S1000 | 32MB | 16MB | 0C to +70C | Buy |
