Overview
The MitySOM-A10S is an Altera Arria 10 SoC SOM (system on module) for a wide range of industrial embedded applications. In addition to the A10 processor, the module includes on-board power supplies, two DDR4 RAM memory subsystems, micro SD card, a USB 2.0 on the go (OTG) port, and a temperature sensor. The MitySOM-A10S SOM provides a complete and flexible CPU infrastructure for highly integrated embedded systems.
The MitySOM-A10S is available with a 270KLE Arria 10 SX which provides dual-core Cortex-A9 32-bit RISC processors with dual NEON SIMD coprocessors. Options for 160KLE and 480KLE devices are also available. This MPU can run a rich set of real-time operating systems containing software APIs expected by modern system designers. The ARM architecture supports several operating systems, including Linux.
Applications
- Test and Measurement
- Industrial Automation and Control
- Industrial Instrumentation
- Medical Instrumentation
- Embedded Imaging
- Machine Vision
- Medical Imaging
- Closed Loop Motor Control
Specifications
CPU
| Cortex-A9 Applications Processor(s) | |
| Max # of Cores | 2 |
| Max CPU Speed | 1500MHz |
| L1 Program Cache | 32KB |
| L1 Data Cache | 32KB |
| L2 Cache | 512KB |
| Internal RAM | 256KB |
CPU subsystem is a hard IP block referred to by Altera as the HPS, Hard Processor Subsystem
Memory
| System Memory | |
| RAM | 2 banks DDR4 memory:
|
| FPGA Fabric | |
| Max Logic Elements | 480kLE |
| Global Clock | 460MHz |
| Max M20K Memory | 28Mb |
| Max MLAB Memory | 4.3Mb |
| Floating Point Multipliers | Up to 1368 |
| Fixed Point Multipliers | Up to 2736 |
Interfaces
| 3 Gigabit Ethernet MACs (10/100/1000Mbps) | Max 138 Direct FPGA I/Os, 30 shared HPS/FPGA I/Os | 4 SPI controllers |
| 12 High speed transceiver pairs, 11.3Gbps (theoretical) | 1 MMC/SD/SDIO | 5 I2C controllers |
| 1 x8 PCIe Hard IP Block (up to Gen 3) | 1 USB 2.0 OTG | 2 UARTs |

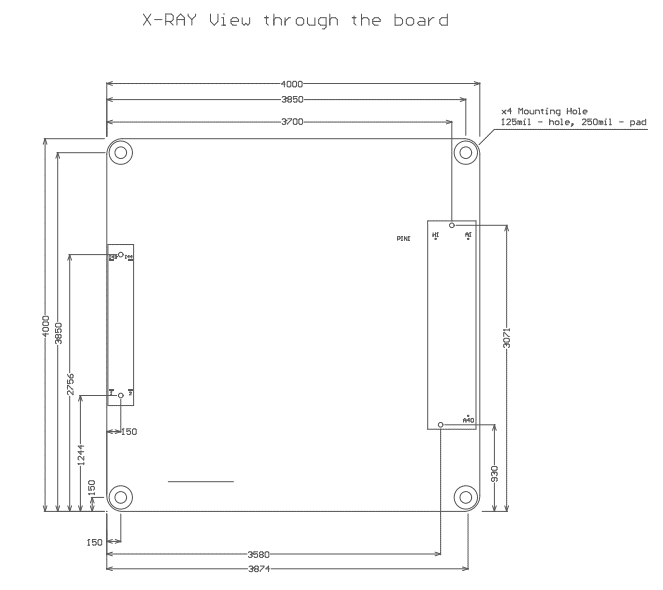

Mechanical
| Dimensions | Length | Width |
| Inches | 4.0 | 4.0 |
| Millimeters | 101.5 | 101.5 |

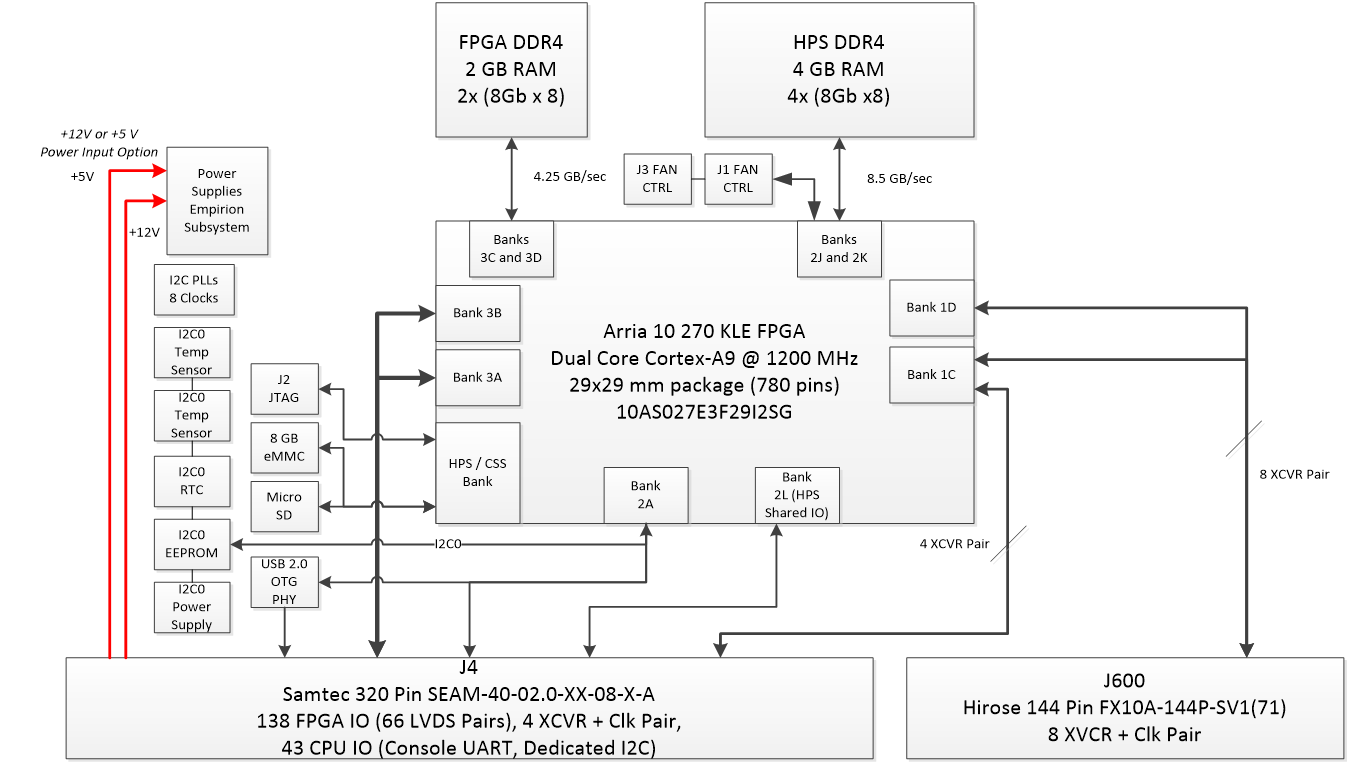

Block Diagram
Development Resources

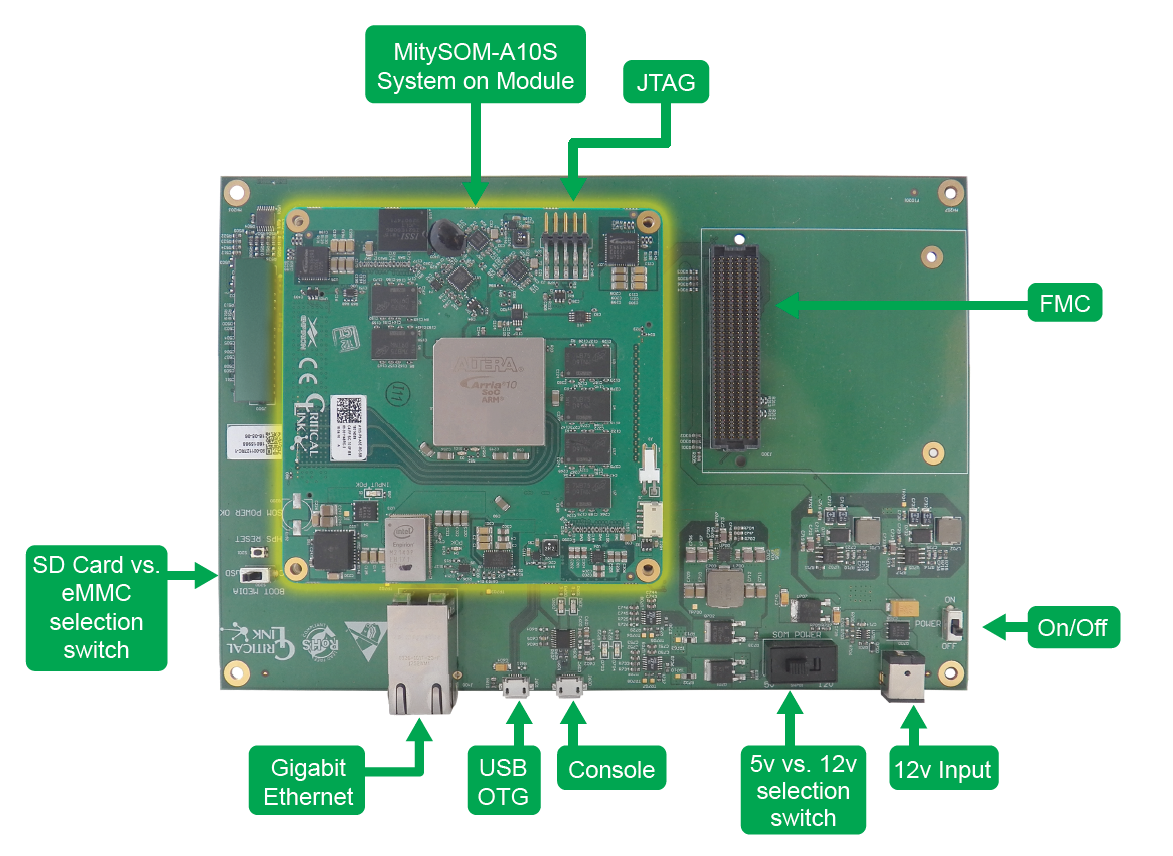

Development Kit
The MitySOM-A10S Development Kit supports Critical Link’s Altera Arria 10 SoC-based modules.
Each kit includes a compatible MitySOM-A10S module and a base board that together feature an array of interfaces and expansion headers such as FMC, USB 2.0 OTG, USB Console, PCI-e x4 Expansion Header, Gigabit Ethernet, and eMMC/SD Card.
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MitySOM-A10S Altera Arria 10 SOM Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MitySOM-A10S Altera Arria 10 SOM Forum to access:
- Software, Hardware, and FPGA forums
- Altera Arria 10 SoC Documentation
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The following table lists the standard configurations for Critical Link’s MitySOM-A10S Altera Arria 10-based modules. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Part Number | CPU Speed | FPGA KLE |
HPS RAM (32-bit) | FPGA RAM (16-bit) | On-board eMMC | Temp | Buy |
| A10S-P8-A5E-RI-SB | 1.2GHz | 270 | 4GB | 2GB | Yes | -40C to 85C | Buy |
| A10S-P8-X5E-RC-SA | 1.2GHz | 270 | 4GB | 2GB | No | 0C to 70C | Buy |
| A10S-P8-X5E-RI-SA | 1.2GHz | 270 | 4GB | 2GB | No | -40C to 85C | Buy |
| A10S-P9-A5E-RI-SB | 1.2GHz | 480 | 4GB | 2GB | Yes | -40C to 85C | Buy |
| A10S-P9-A5E-RC-SB | 1.2GHz | 480 | 4GB | 2GB | Yes | 0C to 70C | Buy |
| A10S-P9-X5E-RC-SA | 1.2GHz | 480 | 4GB | 2GB | No | 0C to 70C | Buy |
| A10S-P9-X5E-RI-SA | 1.2GHz | 480 | 4GB | 2GB | No | -40C to 85C | Buy |
| A10S-P7-XXD-RC-SA | 1.2GHz | 160 | 2GB | N/A | No | 0C to 70C | Buy |
