Overview

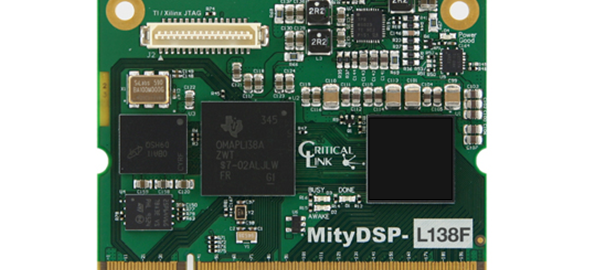

The MityDSP-L138F-A7 offers a transition path for customers dealing with SPARTAN-6 replacement / obsolescence, and is a drop-in replacement for the MityDSP-L138F.

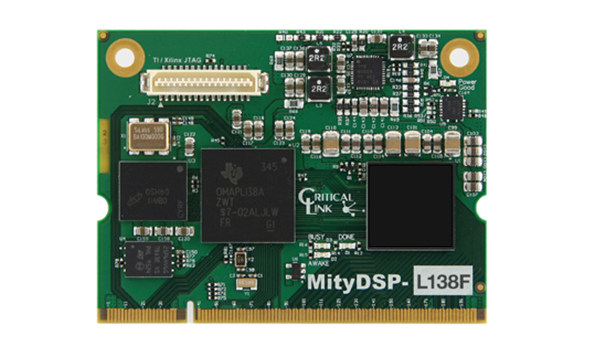

The MityDSP-L138F-A7 is a highly configurable, small form-factor processor card that features a Texas Instruments OMAP-L138 456 MHz (max) Applications Processor (OMAP) tightly integrated with the Xilinx Artix-7 Field Programmable Gate Array (FPGA), FLASH (NAND, and NOR) and mDDR2 RAM memory subsystems. The design of the MityDSP-L138F-A7 allows end users the capability to develop programs/logic images for both the OMAP and the FGPA.
Applications
- Embedded Instrumentation
- Industrial Automation
- Industrial Instrumentation
- Medical Instrumentation
- Embedded Control Processing
- Network Enabled Data Acquisition
- Test and Measurement
- Software Defined Radio
- Bar Code Scanners
- Power Protection Systems
- Portable Data Terminals
Specifications
CPU
| TI DSP Processor | C674x Fixed / Floating Point DSP |
| Max CPU Speed | 456MHz |
| L1 Program Cache | 32KB |
| L1 Data Cache | 32KB |
| L2 Cache / Internal RAM | 256KB |
| TI Applications Processor | ARM926EJ-S MPU |
| Max CPU Speed | 456MHz |
| L1 Program Cache | 16KB |
| L1 Data Cache | 16KB |
| Internal RAM | 8KB |
Memory
| System Memory | Available for Both CPUs |
| RAM | Up to 256MB |
| NOR Flash | Up to 16MB |
| NAND Flash | Up to 512MB |
| FPGA Options | XC7A15 or XC7A50 |
| Slices | Up to 8,150 |
| Data rate | Up to 1,250Mbps |
| Block RAM | Up to 2,700Kb |
Interfaces
| 96 FPGA User I/O pins | SATA |
| 10/100 EMAC | McBSP (2) |
| USB (2) | Video Output |
| UART (2) | Camera/Video Input |
| MMC/SD |

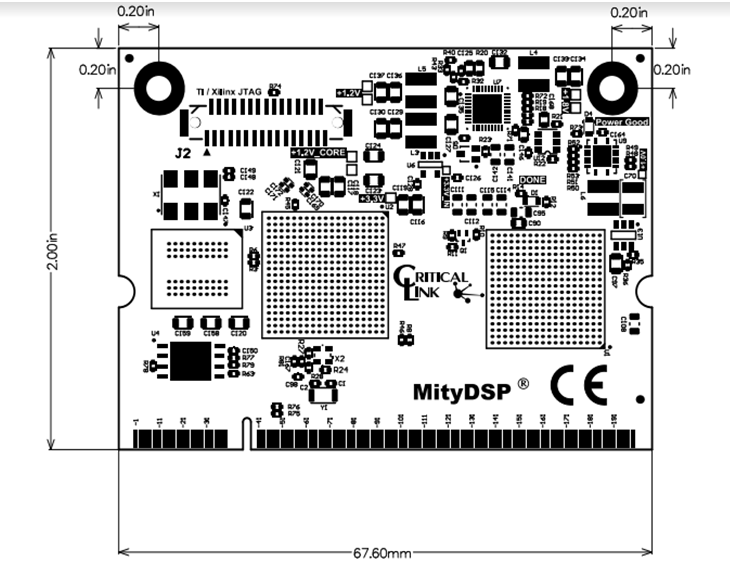

Mechanical
| Dimensions | Length | Width |
| Inches | 2.66 | 2.0 |
| Millimeters | 67.60 | 50.80 |

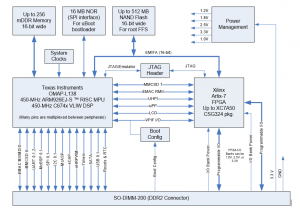

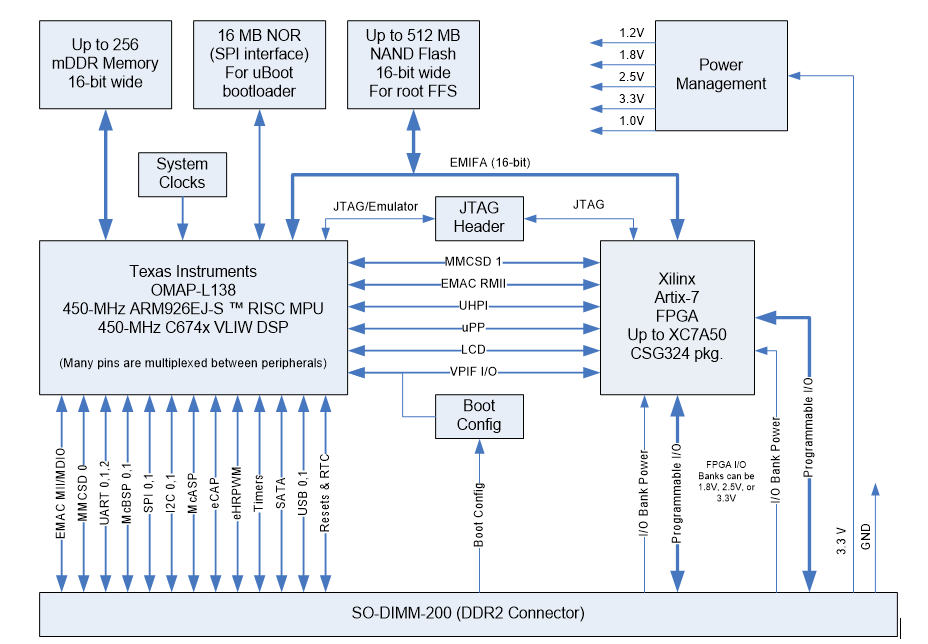

Block Diagram
The MityDSP-L138F-A7 serves as an upgrade option for customers dealing with SPARTAN-6 replacement / obsolescence. The SOM is a drop-in replacement for existing MityDSP-L138F customers.
Documentation
- MityDSP-L138F-A7 Data Sheet
- Carrier Board Design Guide – contact info@criticallink.com
- TI OMAP-L138 Data Sheet
- Xilinx Artix-7 Product Brief
- L138F JTAG Debug Adapter
- MityDSP-L138(F) Family Product Change Notifications (PCN)
Development Resources
Development Tools and Software
| Software Support | CPU Subsystem |
| Real-time Linux Operating System | ARM9 |
| ThreadX Real Time OS | ARM9 |
| uBoot | ARM9 |
| QNX 6.4 | ARM9 |
| Windows Embedded CE ready | ARM9 |
| DSP/BIOS Real-time Operating System | C674x DSP |
| Development Tool | Subsystem |
| Texas Instruments Code Composer Studio | ARM9 and C674x DSP |
| GNU Toolchain | ARM9 |
| Xilinx Vivado | Xilinx FPGA |
| Timesys LinuxLink | ARM9 |
Technical Support
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MityDSP ARM Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MityDSP ARM Forum to access:
- Software, Hardware, and FPGA forums
- TI OMAP-L1x Wiki
- TI E2E Forums
- MityDSP-L138F Software Defined Radio Using Upp Data Transfer
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Purchase Options
The MityDSP-L138F-A7 is a drop-in replacement for existing MityDSP-L138F customers. See the related PCN for guidance on part number transition and design migration support.
The SOM also serves as an upgrade option for customers dealing with SPARTAN-6 replacement / obsolescence.
| Module P/N | CPU | FPGA | NOR | NAND | RAM | Temp | Buy |
| L138-FJ-326-RC | 456MHz | XC7A15 | 16MB | 256MB | 256MB | 0C to +70C | Buy |
| L138-DJ-325-RI | 375MHz | XC7A15 | 16MB | 256MB | 128MB | -40C to +85C | Buy |
| L138-FM-336-RL | 456MHz | XC7A50 | 16MB | 512MB | 256MB | -40C to +70C | Buy |
| L138-DM-336-RI | 375MHz | XC7A50 | 16MB | 512MB | 256MB | -40C to +85C | Buy |
