Overview
The MityDSP-L138(F) Industrial IO Development Kit supports the OMAPL138-based modules from Critical Link.
Each MityDSP-L138(F) Development Kit includes a compatible MityDSP-L138 or MityDSP-L138F module (see Purchase Options below for compatible modules) and a base board that features a strong array of interfaces such as USB, SATA, RS-232, DVI, Audio output, MMC/SD, Expansion UART for RS232 or RS485/422, and CAN Bus as well as system prototyping through three 50-pin expansion headers.
Development Kit Contents
Each MityDSP-L138(F) Development Kit includes:
- MityDSP-L138 Baseboard
- Compatible MityDSP-L138 Family Module (See “Purchase Options” below)
- DB9 Serial Port cable
- Ethernet cable
- AC/DC 12V Power Supply
- JTAG Debug Adapter
- USB Flash Drive with Development VM and Documentation
Documentation available through Critical Link:
- Baseboard Schematics in PDF Format – See MityDSP ARM Wiki
- Baseboard BOM – Contact Us
- Baseboard Altium Designer Source Files – Contact Us

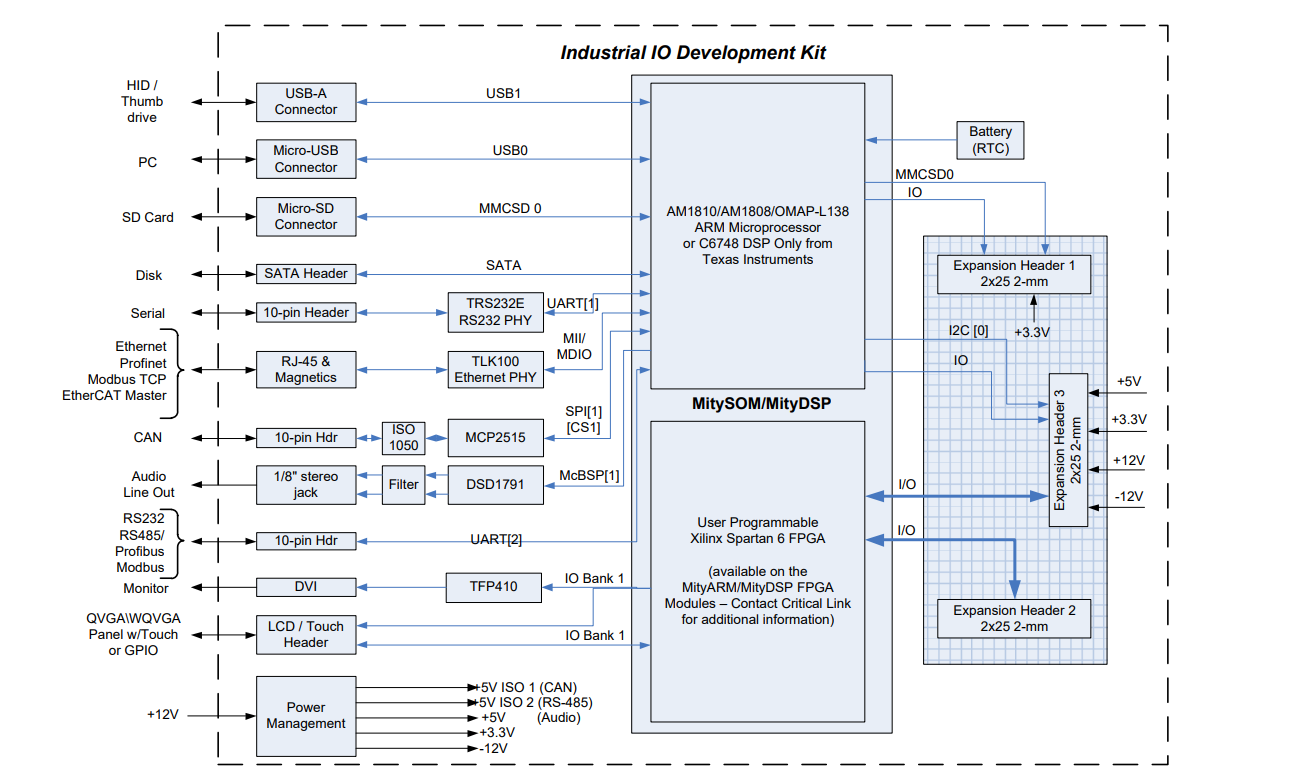

Block Diagram & Mechanical Detail

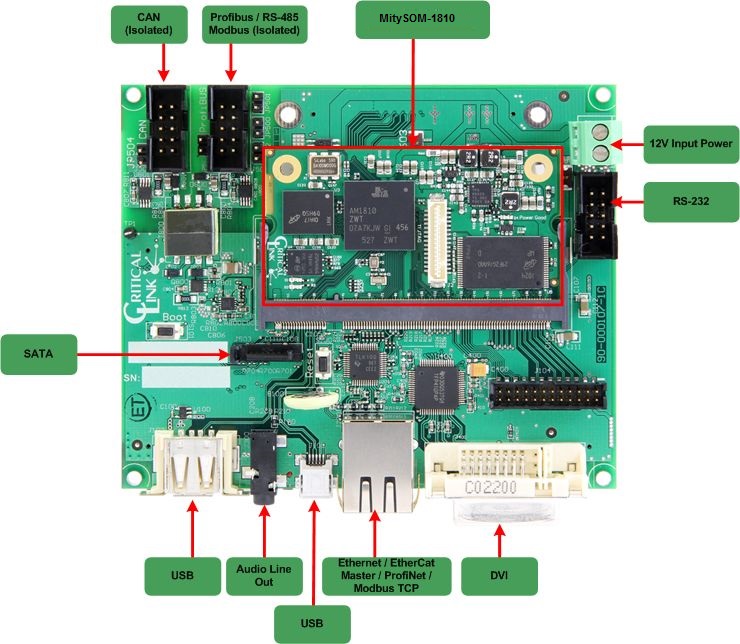

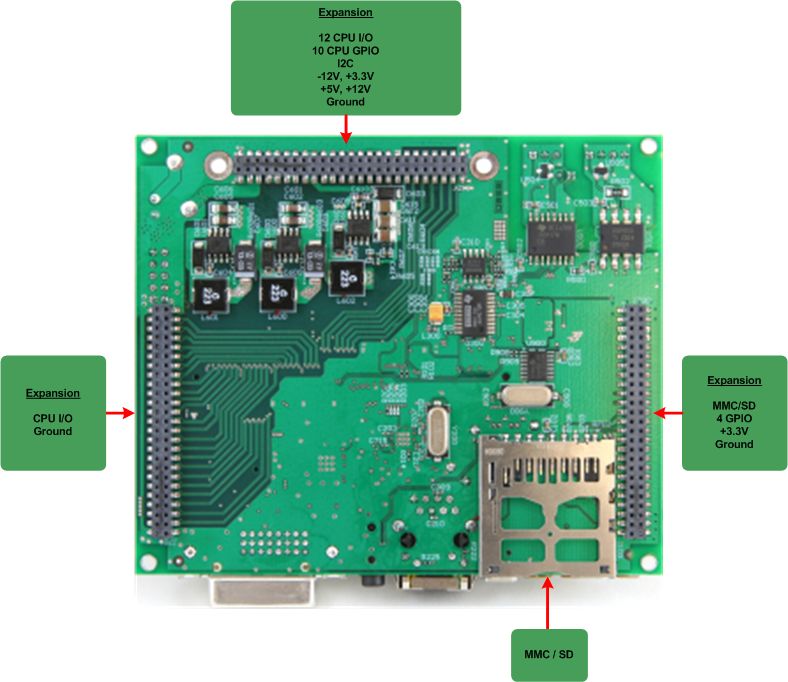

Click on the images below to view details for the MityDSP-L138(F) Development Kit:
| Dimensions | Length | Width |
| Inches | 4.49 | 3.74 |
| Millimeters | 114.00 | 95.00 |
Development Resources
Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.
- Visit our MityDSP ARM Wiki to access:
- Linux OS and board support package details, including source code
- Product change notices
- Base board design guide
- Development kit base board design files
- Software guide to getting started, tool chain, tips and how-to’s
- Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
- Frequently asked questions
- Visit our MityDSP ARM Forum to access:
- Software, Hardware, and FPGA forums
- TI OMAP-L1x Wiki
- TI E2E Forums
- MityDSP-L138F Software Defined Radio Using Upp Data Transfer
Critical Link’s embedded design team also offers engineering services and other support options such as:
- Schematic design review for customer designed carrier boards
- Complete design review services
- Software development services, including custom BSP development
- Base board development services
- Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle
Contact us for more information on these services.
Compatible Expansions
Videos
Purchase Options
The following table lists the standard configurations for Critical Link’s Texas Instruments OMAP-L138-based development kit. For shipping status, availability, and lead time of these configurations please contact Critical Link at info@criticallink.com.
| Dev Kit | Module P/N (Included) | Buy |
|
80-001755
|
L138-FM-336-RL-J | Buy |
|
80-001104
|
L138-FX-325-RC | Buy |
|
80-001106
|
L138-FG-325-RC | Buy |
|
80-001109
|
L138-FI-325-RC | Buy |
|
80-001111
|
L138-FI-336-RL | Buy |
|
80-001116
|
L138-DG-325-RI | Buy |
|
80-001113
|
L138-DI-325-RI | Buy |
