MityCCD-H9971High resolution front-illuminated sensor CCD Camera

Contact Critical Link for product availability

Overview

Standard resolution economical front illuminated sensor with built in TEC.

Features

  • Front-illuminated sensor
  • Visible and near IR sensitivity
  • No etaloning
  • Large pixel size: 24 x 24 micron
  • TE-Cooled to -15°C

Applications

  • Raman Spectroscopy
  • Low-light Imaging
  • Industrial Inspection
  • Semiconductor Inspection
  • Portable Scientific Imaging

Documentation

MityCCD Family-level Documentation



Specifications

Sensor Specification

Type Front-illuminated
Pixel Size 24 um x 24 um
Image Area Various – See Camera Models Above
Pixel Array Various – See Camera Models Above
Well Capacity
300 ke¯ (typical – vertical)
Well Capacity
600 ke¯  (typical – horizontal)
Dark Current
10 e¯/pixel/sec  (typ. @ 0 °C)

System Noise

Noise (typ)
6.5 e¯ RMS @ 500 KHz

Data Acquisition & Binning Modes

Area Read
Full image and sub-area (any rectangular region of the CCD)
Full Binning
Standard CCD binning (all CCD rows summed in read-out register)
Partial Binning
Some rows summed in CCD and partial results summed in MityDSP
Area Mask Binning
Vertical and horizontal binning in MityDSP
Multiple Binning Patterns
Multiple Binning patterns stored in memory and swapped in as directed on a cycle basis

On-board Processor (MityDSP)

CPU Engine
Floating-point DSP, FPGA, FLASH, SDRAM (up to 32 MByte)
Full Featured SDK
Supports rapid application development
Applications
Peak finding, signature analysis, general purpose computing, etc.

Cooling

Type
Thermo-electric to -15 °C (from 20 °C ambient) +/- .1 °C

Mount

Environment

Temperature
0°C to +50°C
Humidity
10% to 90% non-condensing

Electrical

Voltage
110V / 220V or 12-24 VDC

Quantum Efficiency

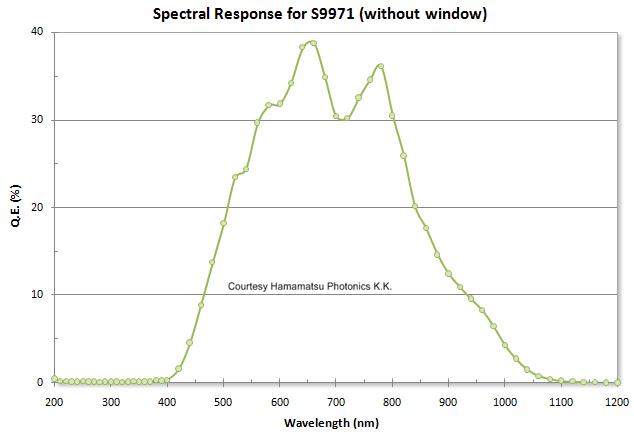

S9971 Spectral Response

Block Diagram

MityCCD-H7031-Block-Diagram



Interfaces

USB Supports USB 2.0
Ethernet
Supports full TCP / UDP stack over 10 / 100 Base T
Digital I/O
Supports external triggering and control of outboard devices

Mechanical

Dimensions
98mm x 100mm x 90mm  (3.86″ x 3.94″ x 3.54″)
Weight
750g  (26oz.)

Development Tools and Software

Purchase

Camera Model Image Area Active Pixels Buy
Width (mm) Height (mm) Horizontal Vertical
MityCCD-H9971-0906 12.288 1.440 512 60 Buy
MityCCD-H9971-1006 24.576 1.440 1024 60 Buy
MityCCD-H9971-1007 24.576 2.976 1024 124 Buy
MityCCD-H9971-1008 24.576 6.048 1024 252 Buy

Find your local sales contact.

*Note: Contact Critical Link for ordering information.
