3U5MGXS Sensor BoardProduction-ready 5MP Canon 3U5MGXS Sensor Board

Contact Critical Link for product availability

Overview

  • Sensor board with Canon 3U5MGXS 5MP Sensor
  • Production-suitable hardware design
  • Serves as a building block for OEM product design projects. Critical Link’s use of hardware building blocks accelerates development schedule and reduces NRE
  • Rugged board-to-board connector and corner mounting holes provides stable connection to a variety of compatible processor boards.
  • Board measures 2.5″ (63cm) x 2.5″ (63cm)
  • Critical Link provides an array of compatible FPGA-based processor boards and interface boards for complete camera development

Applications

The Canon 3U5MGXS 5MP sensor board is designed for industrial performance applications in automotive, broadcasting, electronics, flat panel display, food, intelligent transportation systems, manufacturing, medical, military, pharmaceutical, life sciences and print industries, including:

  • Embedded Vision
  • Machine Vision
  • Drones / UAS
  • Inspection
  • Aerial mapping
  • Medical
  • Surveillance

Documentation

Specifications

Sensor Specification

Sensor Canon 5MP 3U5MGXS
Type Front-illuminated
Active Pixels 2592 (H) x 2056 (V)
Pixel Size 3.4um x 3.4um
Image Area
8.81mm (W) x 6.99mm (H)
Frame Rate (Global Shutter)
120fps
Dark Current @ 20C
1.3 e-/s
Chroma
Mono or Color
Temperature -30°C to +100°C

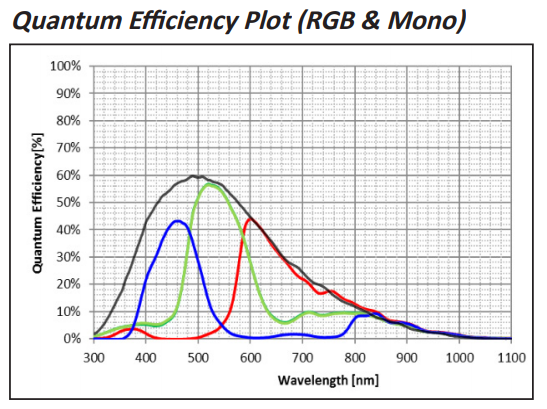

Quantum Efficiency

Canon 5MP QE

Related Products

Purchase

The 3U5MGXS Sensor Board is a production-suitable hardware design for embedded imaging and vision applications. It is intended to serve as a building block for OEM product design projects assisted by Critical Link. Contact us to discuss using this board for your next product design project.
