MitySOM-iMX6 modules with SMARCSolo, DualLite, Dual, & Quad Core iMX6 SOMs

Overview

The MitySOM-iMX6 is based on NXP Semiconductors iMX6 family of processors with ARM Cortex-A9 at speeds up to 1.2 GHz.

The family offers industrial performance in a small form factor and features different combinations of RAM and Flash memory, a complete list of interfaces and peripherals, 2D/3D graphics acceleration, and video acceleration. Our development kit is the fastest way to test the application before the prototyping phase, and in many cases gives a jump start on base board design.

Applications

  • Home & Building Automation
  • Machine Vision
  • Connected Vending Machines
  • Industrial Control
  • Test and Measurement
  • Human Interface

Documentation

Specifications

Processor

Cortex-A9 Applications Processor
Cores Up To 4 ARM Cortex-A9 Cores
Max CPU Speed 1.2GHz
L1 Program Cache 32KB per core
L1 Data Cache 32KB per core
L2 Cache 1MB
Includes NEONTM Media Coprocessor, 2D/3D Graphics Accelerator, and Video acceleration (H.264, H.263, MPEG-2, MPEG-4)

Memory

System Memory
RAM Up To 4GB DDR3
eMMC Flash Up To 8GB
SPI Flash optional



Block Diagram

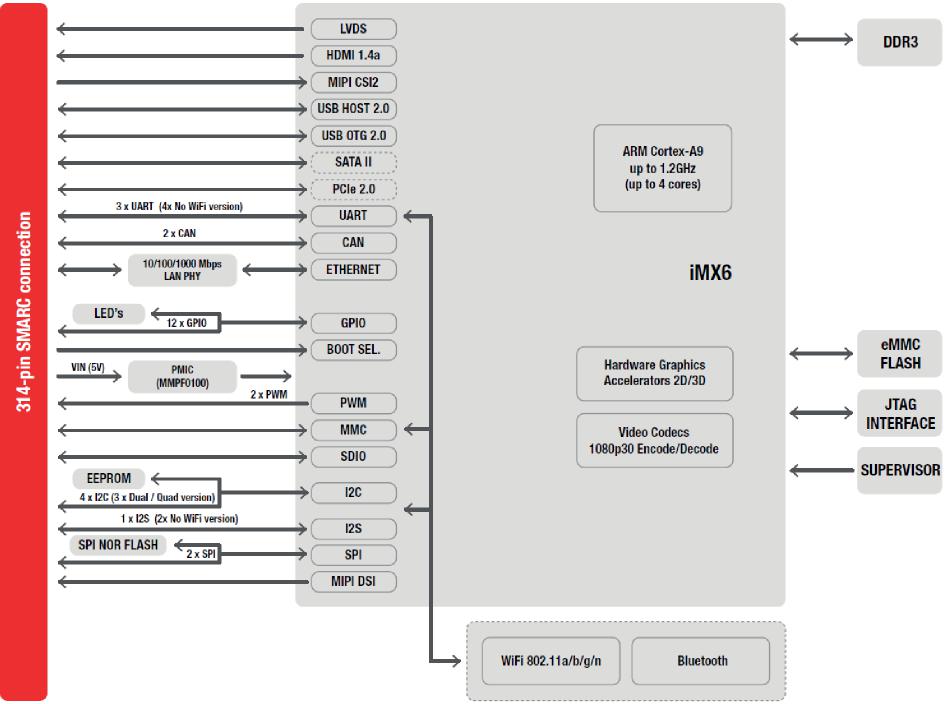

MitySOM-iMX6 block diagram















Interfaces

10/100/1000 Mbps Ethernet PHY Interface WiFi IEEE 802.11 b/g/n 2 x PWM
1 x USB 2.0 Host Bluetooth v4.0 (BLE) 2 x CAN
1 x USB 2.0 OTG 3 x UART (4 x No WiFi version) 1 x SDIO
1 x LVDS (4 lanes) 4 x I2C (3 x Dual/Quad version) 12 x GPIO
1 x Video Output 1.4a (with audio)  1 x MMC  1 x JTAG Interface
1 x MIPI DSI (2 lanes) 1 x I2S (2 x No WiFi version) 1 x SATA II (Dual/Quad version)
1 x MIPI CSI2 interfaces (4 lanes Dual/Quad version, 2 lanes Solo/DualLite version) 2 x SPI 1 x PCIe v2.0 (1 lane) (Dual/Quad version)

Mechanical

Dimensions Length Width
Inches 3.23 1.97
Millimeters 82.0 50.0

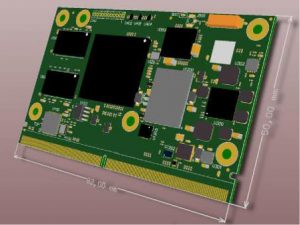

MitySOM-iMX6 mechanical dimensions, front view















MitySOM-iMX6 mechanical drawing, detailed front view











MitySOM-iMX6 mechanical drawing, side view





Development Kits

Software

Software Support

  • Embedded Linux
  • Android

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services. Visit our Engineering Support Site to engage with our team and access complete documentation to get you up and running on your next project.

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.
