MitySOM-335x WiFi-BLECortex-A8 with WiFi & NEON SIMD Coprocessor

Overview

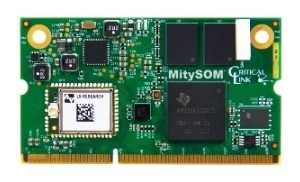

The MitySOM-335x WiFi family of highly configurable, small form-factor processor cards feature a Texas Instruments Sitara AM335x Processor and a LS Research TiWi-BLE WiFi and Bluetooth module. The modules include NAND FLASH and DDR3 RAM memory subsystems.   A MitySOM-335x WiFi System on Module (SoM) provides a complete and flexible CPU infrastructure for highly integrated embedded systems.

The onboard AM335x processor provides Cortex-A8 32-bit RISC processor with a NEON SIMD coprocessor. This MPU is capable of running a rich set of real-time operating systems containing software applications programming interfaces (APIs) expected by modern system designers. The ARM architecture supports several operating systems, including Linux, QNX, and Windows Embedded Compact.

Critical Link’s MitySOM-335x family of modules uses Texas Instruments AM3352, AM3354, and AM3359 processors.  Click the diagram below to view the differences between these processors.

AM335x_Processor comparison



Applications

  • Embedded Instrumentation
  • Industrial Automation
  • Industrial Instrumentation
  • Medical Instrumentation
  • Building Automation
  • Network Enabled Data Acquisition
  • Test and Measurement
  • Closed Loop Motor Control
  • Smart Toll Systems
  • Portable Data Terminals

Technical Documents

Specifications

CPU

TI Applications Processor Cortex-A8 32-Bit RISC MPU
Max CPU Speed 1GHz
L1 Program Cache 32KB
L1 Data Cache 32KB
L2 Cache 256KB
Internal RAM 64KB
Emulation / Debug JTAG
Emulation Trace Module
Emulation Trace Buffer

Memory

RAM Up to 1GB DDR3
NOR Flash (Optional) 8MB
NAND Flash (Optional) Up to 1GB

Block Diagram

MitySOM-335x-WiFi_block-diagram













Interfaces

10/100/1000 EMAC (2) McASP (2) eHRPWM (1)
18-bit WXGA LCD Resistive Touch Screen Controller CAN (2)
USB (2) I2C (2) RTC
UART (5) SPI (2) Watchdog Timer
MMC/SD/SDIO (2) eQPE (1) GPIO

Mechanical

Dimensions Length Width
Inches 2.66 1.5
Millimeters 67.60 38.10



MitySOM-335x_DDR3-TIWI-Mechanical













Development Kits

Development Tools and Software

Software Support

  • Real-time Linux Operating System
  • uBoot
  • TimeSys LinuxLink
  • QNX Real-time Operating System Capable
  • Windows Embedded Capable
  • Qt Embedded Graphics

Development Tools

  • Texas Instruments Code Composer Studio
  • GNU Toolchain

Technical Support

Our customers benefit from engineering and applications support for the life of their product. This includes free, lifetime access to our technical support site, as well as access to application engineering resources and other services.

  • Visit our MitySOM Cortex-A8 Wiki to access:
    • Linux OS and board support package details, including source code
    • Product change notices
    • Base board design guide
    • Development kit base board design files
    • Software guide to getting started, tool chain, tips and how-to’s
    • Hardware power draw, pin outs, shock and vibration, CAD files, mechanical drawings and 3D models
    • Frequently asked questions
  • Visit our MitySOM Cortex-A8 Forum to access:
    • Software, Hardware, and FPGA forums
  • TI Cortex-A8  Wiki
  • TI E2E Forums

Critical Link’s embedded design team also offers engineering services and other support options such as:

  • Schematic design review for customer designed carrier boards
  • Complete design review services
  • Software development services, including custom BSP development
  • Base board development services
  • Systems Engineering, Software, and Hardware Design to support your project anywhere in the product development lifecycle

Contact us for more information on these services.



Video

Related Products

Purchase

Module P/N CPU NOR NAND DDR3 RAM Temperature Mouser Digikey Avnet Arrow
3354-GX-X38-RC-BLE 720MHz N/A 512MB 512MB 0C to +70C * * * *
3354-HX-X38-RC-BLE 800MHz N/A 512MB 512MB 0C to +70C * * * *
3354-HX-X38-RI-BLE 800MHz N/A 512MB 512MB -40C to +85C * * * *

Find your local sales contact.

*Note: The selected distributor does not yet carry this model.  You may contact them for ordering information, or submit a request directly to Critical Link.
