Overview
Features
- InGaAs sensor
- Tall pixels: 50 x 500 micron
- Available in 1.7 and 2.2micron wavelength ranges
- TE-Cooled to -10°C
Applications
- Embedded Instrumentation
- Raman Spectroscopy
- Low-light Imaging
- Portable Scientific Imaging
- Astronomy
Documentation
MityCCD Family-level Documentation
- Binning and Read-out Modes
- Camera Performance
- Mechanical Drawings
- Sensor Selection
- Software
- SDK C Applications Programmer Interface – coming soon…
- MityCCD Viewer User’s Guide
Specifications
Sensor Specification
| Type | InGaAs |
| Pixel Size | 50um x 500um |
| Pixel Array | 256 x 1 (MityCCD-SU256LSB) 512 x 1 (MityCCD-SU512LSE) |
| Array Length | 12.8mm (MityCCD-SU256LSB) 25.6mm (MityCCD-SU512LSE) |
| Saturation Charge |
5×106 e¯/pixel (typical – High Sensitivity Mode)
130×106 e¯/pixel (typical – High Dynamic Range Mode)
|
| Dark Current |
9×10³ e¯/pixel/sec (typ. @ -10°C)
|
System Noise
| Noise – High Sensitivity Mode |
800 e¯ RMS @ 25KHz
|
| Noise – High Dynamic Range Mode |
10,000 e¯ RMS @ 25KHz
|
Data Acquisition & Binning Modes
| Full Line |
Read out a complete line from the sensor
|
| Partial Line |
Read out partial line by specifying start / stop pixel
|
| Binning |
Specify horizontal binning pattern in the MityDSP
|
| Multiple Binning Pattern |
Multiple binning patterns stored in memory and swapped in as directed on a cycle basis
|
On-board Processor (MityDSP)
| CPU Engine |
Floating-point DSP, FPGA, FLASH, SDRAM (up to 32MB)
|
| Full Featured SDK |
Supports rapid application development
|
| Applications |
Peak finding, signature analysis, general purpose computing, etc.
|
Cooling
| Type |
Thermo-electric to -10°C (from 20°C ambient) +/- .1°C
|
Mount
- Several standard mounts available – Contact Critical Link for more information.
Environment
| Temperature |
0°C to +30°C
|
| Humidity |
<80% non-condensing
|
Electrical
| Voltage |
110V / 220V or 12-24 VDC
|

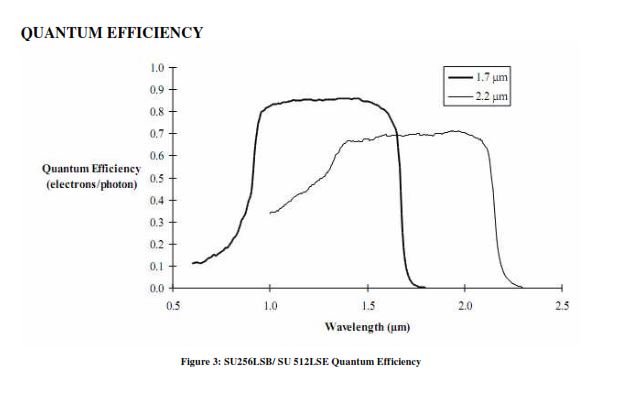

Quantum Efficiency
Block Diagram
Interfaces
| USB | Supports USB 2.0 |
| Ethernet |
Supports full TCP / UDP stack over 10 / 100 Base T
|
| Digital I/O |
Supports external triggering and control of outboard devices
|
Mechanical
| Dimensions |
99mm x 100mm x 90mm (3.92″ x 3.94″ x 3.54″)
|
| Weight |
750g (26 oz.)
|
Development Tools and Software
Purchase
| Camera Model | Enclosure Type | Spectral Range | Image Area | Active Pixels | Buy | ||
| Width (mm) | Height (mm) | Horizontal | Vertical | ||||
| MityCCD-SU256LSB-DAB | Enclosed Body | 1.7um | 12.8 | 0.5 | 256 | 1 | Buy |
| MityCCD-SU512LSE-DAB | Enclosed Body | 1.7um | 25.6 | 0.5 | 512 | 1 | Buy |
| MityCCD-SU256LSB-BAB | Open Frame | 1.7um | 12.8 | 0.5 | 256 | 1 | Buy |
| MityCCD-SU512LSE-BAB | Open Frame | 1.7um | 25.6 | 0.5 | 512 | 1 | Buy |
